Raspberry Pi 3 Model A+

Assembled Parts in Default Configuration

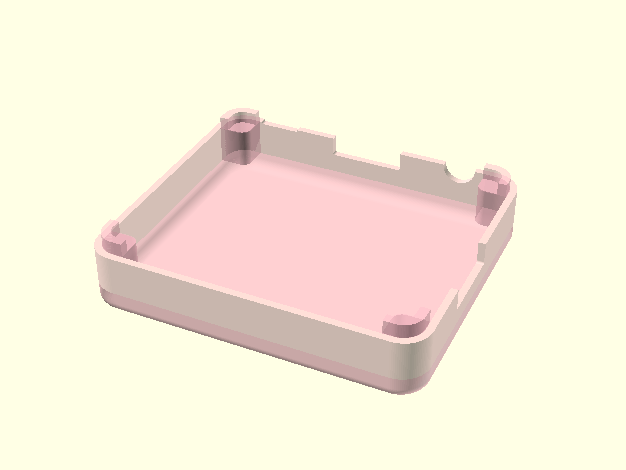

Lid

Simple Case

VESA-75 Case

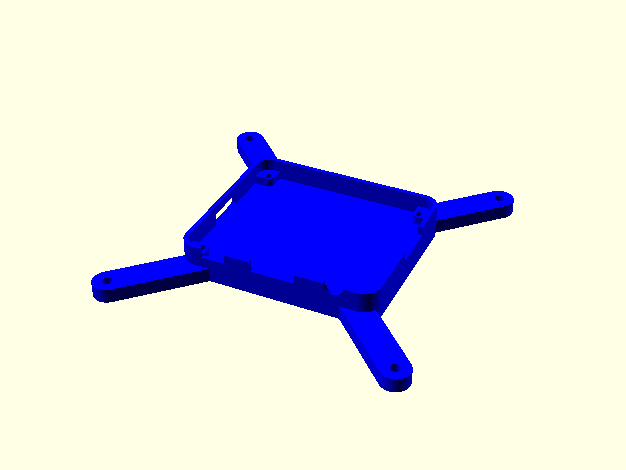

VESA-100 Case

Raspberry Pi 3 Model A+ Model. This part is useful to gauge fitment for a case. Dimensions are +/- 0.05 mm

Summary

Simple cases for a Raspberry Pi 3 Model A+.

The VESA cases allow for mounting to the back of a monitor using M4 screws.

Print Settings

Dimensions are in millimeters.

Post-Printing

Clean off any raft or supports with a knife. Use a hand-drill to even out the holes with appropriately sized drill bits.

How I Designed This

OpenSCAD

References

1. https://www.thingiverse.com/thing:3220994
2. https://github.com/thrasher/raspberry-pi-3-model-a-plus
