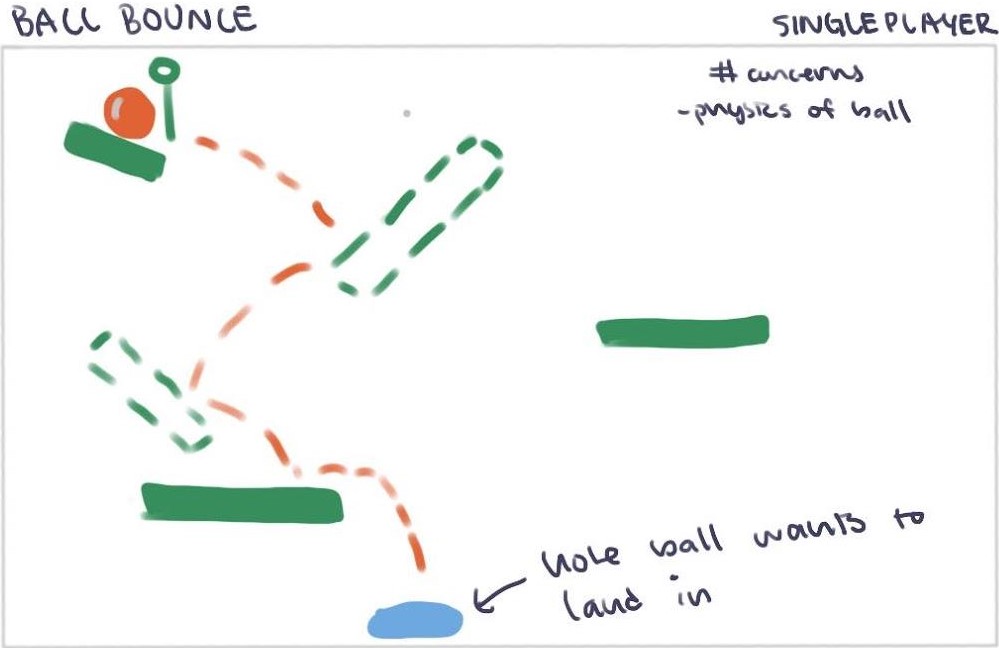

We were unable to complete our original idea in the time frame allotted, so we pivoted to a different idea, which is a game that uses CV to detect a real-life rectangle, creates a virtual rectangle based on these properties, and has a vitual circle chase it. You lose if the circle is able to catch up to and collide with the rectangle, so you have to move your real-life rectangle quickly and with dexterity in order to not lose.
This game can be played in either a computer-only version or in an AR version (with a projector). Details on how to set up the game for each of the different versions is discussed later on.
<iframe width="560" height="315" src="https://www.youtube.com/embed/oeZy3j_s490" frameborder="0" allow="accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe> Here is a video of the computer-only version of our game in action! <iframe width="560" height="315" src="https://www.youtube.com/embed/jQGUcK0w3Lw" frameborder="0" allow="accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe> And here is a video of the AR/projector version of our game in action!In the near future, we hope to complete our original idea. We have described this idea below so that you can see where we are heading.
Our project is a game that combines CV and AR into the gameplay. The human player is able to add obstacles to the game environment by placing them in front of a separate game display screen, OpenCV detects the obstacles, and these obstacles are generated through pygame as a component that other features in the game can interact with. This idea is based off of Puppet.io, a project we were impressed by at MakeHarvard 2020.
This game captures video using your computer webcam. This video feed is near-live capture, and it is not saved locally or to the web. The video is only used to allow for the game to be played. By playing this game, you consent to having video taken, which may involve yourself or other people.
These instructions will get you a copy of the project up and running on your local machine for development and testing purposes. See deployment for notes on how to deploy the project on a live system.
To get started, clone this respository onto your device.
To be able to run this game, you must have OpenCV installed.
- For Ubuntu, use the command
$ pip install opencv-pythonor click here for instructions - For any Linux distro, click here
- For Windows, click here for instructions
- For MacOS, click here
You must also have pygame installed.
- Generally speaking, you can use the command
python3 -m pip install -U pygame --userto install pygame and use the commandpython3 -m pygame.examples.aliensto test that the installation was successful. - If the installation did not occur successfully, or if you would like more details, click here
If you have ROS installed on your computer, OpenCV may not run properly. To resolve this, try uncommenting out the two sys.path lines toward the top of the FinalProject_Model.py file. Click here for more details.
The necessary files are FinalProject_Model.py, FinalProject_View.py, FinalProject_Controller.py, and Calibration.py, all located within the /src folder of our GitHub repository. To run our game, first download these files.
Before calibrating or running the game, make sure that your webcam is not being used by any other application.
- Run Calibration.py. Four windows should appear. A Pygame window, an OpenCV Frame window that should display the live video capture, an OpenCV Mask window in black and white, and a Trackbar window that allows you to calibrate the mask.
- View the taskbar, mask, and frame windows simultaneously.
- Preferably, perform the following calibration steps in front of a uniform background and a well lit area.
- Hold up or place a rectangle within the frame of the webcam. Make sure the rectangle is a distinct color from the background and anything else that may be in the frame. We recommend using Post-It notes for their ability to stick to any uniform movable surface, such as a piece of paper.
- Take a look at the Trackbars window, you'll notice 6 adjustable trackbars labeled L-H, L-S, L-V, U-H, U-S, and U-V. The H,S,V corresponds to hue, saturation, and value while the L,H indicates whether the trackbar is a lower or higher limit. Ranges of HSV in OpenCV is slightly different than the conventional range and this will be helpful to keep in mind as you calibrate. Hue in OpenCV ranges from 0-180° while it is conventionally from 0-360°. Saturation and Value in Open CV range from 0-255 while conventionally they are from 0-100. To learn more about HSV, click here. To convert from RGB to HSV, click here.
- Adjust the trackbars so that, in the mask window, the rectangle appears white while everything else appears black. Try to get rid of any white pixels in the parts of the mask that should be black or any black pixels within the rectangle, even if they only flash on the screen temporarily, as these can reduce the accuracy of the rectangle detection algorithm. Ideally, in the frame window, the rectangle should constantly be outlined and display the text "Rectangle" next to it. We recommend taking your time to get the calibration right because this can have a huge impact on how well the game works.
- Once you find the desired calibration values, record them.
- To exit the calibration program, click on either Frame or Mask and press the Esc key.
- Go into FinalProject_Controller.py, navigate to lines 111-116 in the create_trackbars function, and edit the first numerical value in each line accordingly. The code block looks like this:
cv2.createTrackbar("L-H", "Trackbars", 0, 180, lambda x:x)
cv2.createTrackbar("L-S", "Trackbars", 25, 255, lambda x:x)
cv2.createTrackbar("L-V", "Trackbars", 0, 255, lambda x:x)
cv2.createTrackbar("U-H", "Trackbars", 180, 180, lambda x:x)
cv2.createTrackbar("U-S", "Trackbars", 255, 255, lambda x:x)
cv2.createTrackbar("U-V", "Trackbars", 255, 255, lambda x:x)This initiates the trackbars with the correct values each time so there is no need to recalibrate everytime you run the program.
If you would like to play this game as an AR game, please follow the calibration guidelines below.
- Connect your computer so the projector is a second display.
- Setup the projector so that it is pointed towards a blank wall.
- Setup the computer so that the webcam is capturing the whole screen the projector is projecting onto the wall.
- If you want to change the aspect ratio of the gaming window to fit the projector, which is typically 16x9, open FinalProject_Model.py and uncomment line 298. It should look like this:
camera.resizeFrame = True- Complete general calibration steps.
Once everything is calibrated, simply run FinalProject_Model.py using your preferred method (with an IDE, from the terminal, etc.) to play our game!
To end the game, exit the Pygame window or click on either the Frame or Mask window and press the Esc key.
It is possible that for some unforeseen reasons, our game will not run successfully on your system even though it ran successfully on ours. Here are some details about the systems we used for testing:
- Machine: Dell Latitude 5401 with 30 fps webcam
- OS: Ubuntu 16.04.6 LTS and 18.04.4 LTS (dual-booted, not a virtual machine)
- Software:
- Python 3.7.4
- Pygame 1.9.6
- OpenCV 4.2.0
Even in something as seemingly simple as our game, there can be unintended, negative consequences that arise when the game is deployed in real-world scenarios. Therefore, as developers, we have a responsibility to think very intentionally about where things can go wrong, and we must do our best to protect against these potential issues. We must also have humility and be willing to accept that sometimes, even with our best efforts, things can still go wrong. When issues are exposed unexpectedly after deployment, we must have processes in place that allow for rapid mitigation.
There are some areas of concern that we were able to identify for this project. One concern has to do with video capture. Whenever videos are taken, especially when people are captured in the videos, privacy concerns become relevant. For our game to work, it must take video capture, and people will likely be recorded within the video capture. To mitigate any concerns regarding this, the video capture will strictly be live. No components of the video will be saved, either locally or on the web. We will also include a notice informing users that their video will be recorded but we will not save it or do anything with it other than use it for the gameplay. This notice is located toward the top of the website/readme under "Important Disclosure" and is also included in the header comment in the main FinalProject_Model.py file.
Another concern with computer games is the negative impact they can have on people's health. However, we think that our game is better than others in this respect, especially since it involves problem-solving, forces users to interact with their physical environments, and requires them to move around more than most other games do. When we eventually create the full game based on our original idea, we think one action we can take to mitigate the potential negative consequences is to limit the number of levels or force the game to end after a certain number of rounds, after which the user would need to close the game windows and restart the program in order to play again.
To start off our development process, we started with our documentation and class structure from Micro-Project 4 and altered it based on our idea for the final project.
Controlling the game required objects to be created, displayed on the screen, moved on the screen, and allowed to interact with each other. The following method controls the behavior which causes the ball to chase the rectangle.
def moveBall(self):
""" Moves ball toward the square and recreates hitbox after moving.
"""
dx = 5
dy = 5
if self.block.x_center > self.ball.x_pos:
self.ball.x_pos += dx
elif self.block.x_center < self.ball.x_pos:
self.ball.x_pos -= dx
if self.block.y_center > self.ball.y_pos:
self.ball.y_pos += dy
elif self.block.y_center < self.ball.y_pos:
self.ball.y_pos -= dy
self.ball.hitbox = pygame.Rect(self.ball.x_pos-self.ball.radius, self.ball.y_pos-self.ball.radius, self.ball.radius*2, self.ball.radius*2)Depending on where the ball is located in relation to the block, the ball’s position is updated. After the position is updated, the ball’s hitbox is updated to make sure that collisions can still be detected.
Speaking of collision detection, the following line of code determines whether a collision has occurred.
hitboxList[0].colliderect(hitboxList[1])In pygame, a hitbox is a rectangle that defines a game feature’s boundaries. Using hitboxes simplifies collision detection. hitboxList contains two hitboxes: one for the circle and one for the rectangle. The method above checks to see if the two hitboxes are intersecting/colliding. For further documentation, click here.
After we used starter OpenCV code from the Image Processing toolbox assignment to capture webcam feed, we set about trying to determine how to best optimize our video processing to focus on what we needed for the purposes of the game and filter out the rest. We decided to use manual thresholding with trackbars to allow the user to best calibrate the thresholding to their ambient environment and lighting conditions. Calibration can take some time, but based on our testing, the results are worth the effort. We also believe that requiring the user to manually calibrate the thresholding presents a unique learning opportunity. It allows the user to go “behind the scenes” and see what the computer sees, helping them develop an intuitive, high-level understanding of fundamental computer vision concepts like thresholding and contour detection. The best part is that they need not have prior computer science knowledge in order to understand these concepts. Here is the code for thresholding:
hsv = cv2.cvtColor(self.frame, cv2.COLOR_BGR2HSV)
lower_color = np.array([l_h, l_s, l_v])
upper_color = np.array([u_h, u_s, u_v])
mask = cv2.inRange(hsv, lower_color, upper_color)The first line converts the RGB color scheme captured by the webcam to HSV, which is better for object detection. The second and third lines create upper and lower bounds for the HSV values, as determined by the trackbars. The final line filters out values outside of these bounds.
After filtering, we were ready to detect a rectangle. Here is the code we used to do so:
contours, _ = cv2.findContours(self.mask, cv2.RETR_TREE, cv2.CHAIN_APPROX_SIMPLE)approx = cv2.approxPolyDP(cnt, 0.02*cv2.arcLength(cnt, True), True)The first line finds contours in mask, which are lines that form borders between parts of the image that have been filtered out and parts of the image that have passed through the filter. The second line cleans/smooths any group of contours that form a closed polygon and gets the number of contours in this polygon. If this number is four, a rectangle has been detected, and the corresponding code is executed. To learn more about real time shape detection, click here
Though we were able to successfully detect a rectangle, our game had a lot of lag. Therefore, we decided to add the two lines of code seen below:
self.cap.set(cv2.CAP_PROP_BUFFERSIZE, 2)self.thread = Thread(target=self.update, args=())The first line sets a buffer size of 2, which is quite small. This means that only two frames are stored and the rest are dropped. This would not be ideal for a video streaming application, because it would mean that frames would be dropped (parts of the video would be skipped), but for an application like ours that requires live video, it is acceptable if some frames are dropped if that reduces the time it takes to build up the buffer. The second line sets up multithreading, which allows multiple processes to run simultaneously. We placed our update function, which read each frame, on a separate thread from the rest of the constantly running while loop, which, among other things, created the HSV mask, displayed the mask and frame windows, and attempted to detect a rectangle. This sped up our program because it allowed methods to start running before other methods finished running. To see the code that helped us fix our lag, click here.
To see the program we based our mask creation, contour detection, and shape detection off of, click here

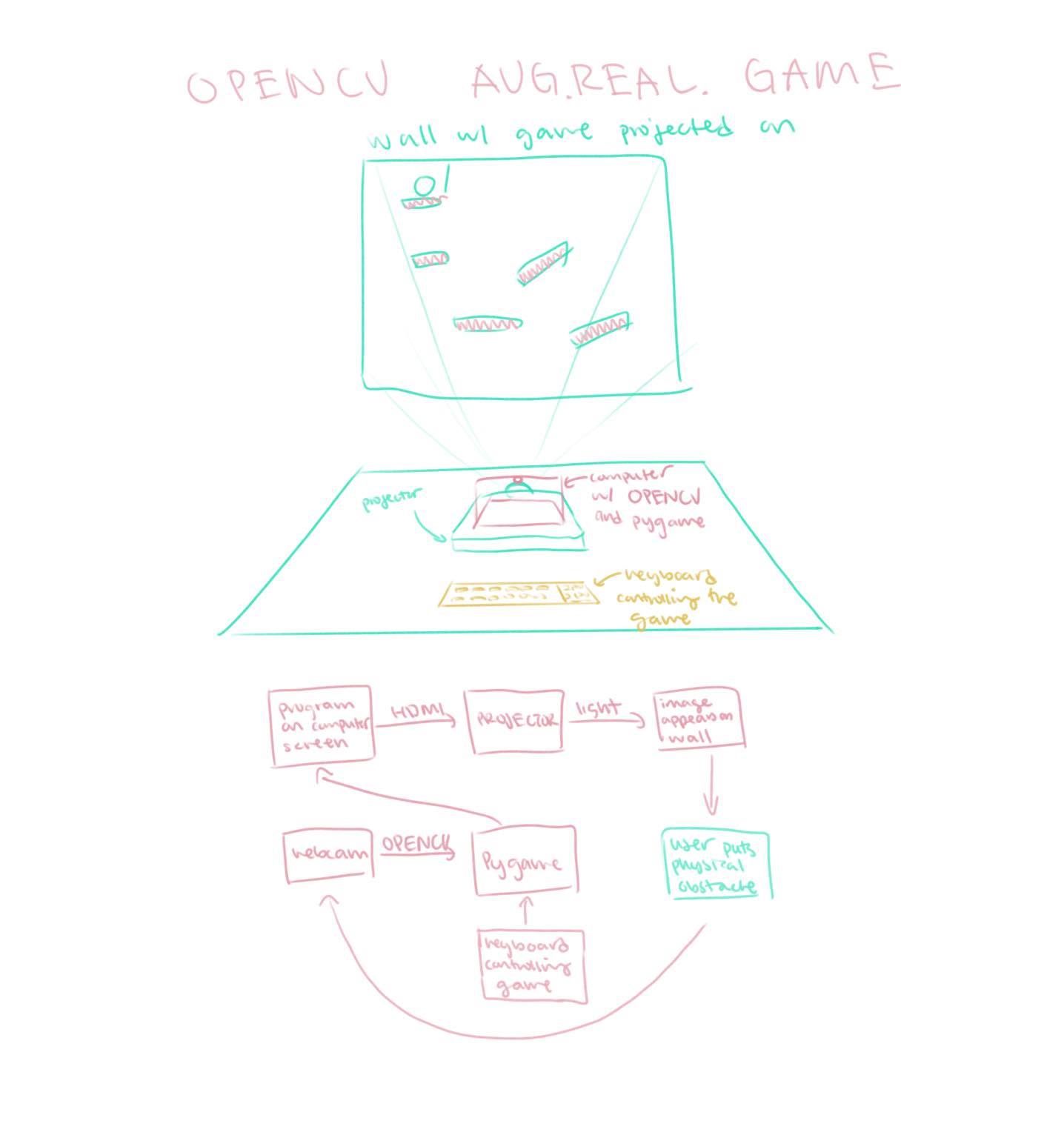

Here is a flow diagram of our setup that gives an overview of the different steps that the program must take in order to run the game.

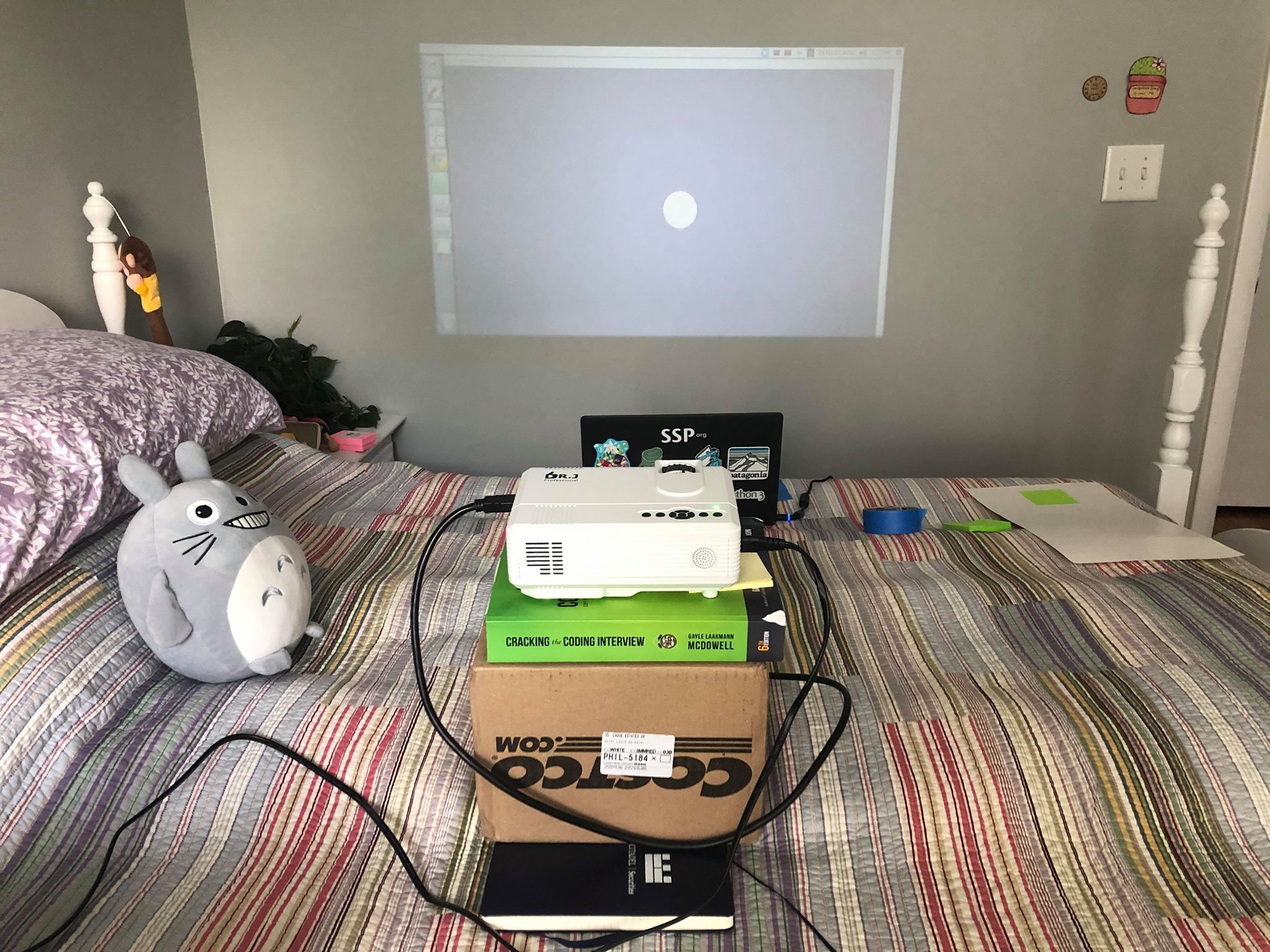

Here is an image of our setup for the AR version of the game.
OpenCV - Detect and process obstacles
Pygame - Game engine
We'd like to thank the Puppet.io team at MakeHarvard 2020 for providing us with inspiration for this project.
There are some resources that helped along the way, we recommend checking them out:
https://pysource.com/2018/12/29/real-time-shape-detection-opencv-with-python-3/
<https://stackoverflow.com/questions/58293187/opencv-real-time-streaming-video-capture-is-slow-how-to-drop-frames-or-get-- sync>
https://stackoverflow.com/questions/20842801/how-to-display-text-in-pygame
https://www.pygame.org/docs/ref/rect.html
https://pysource.com/2018/12/29/real-time-shape-detection-opencv-with-python-3/
Jackie Zeng
Rohil Agarwal
This project is licensed under the MIT License - see the LICENSE.md file for details
