Another inefficient genetic algorithm for drawing images

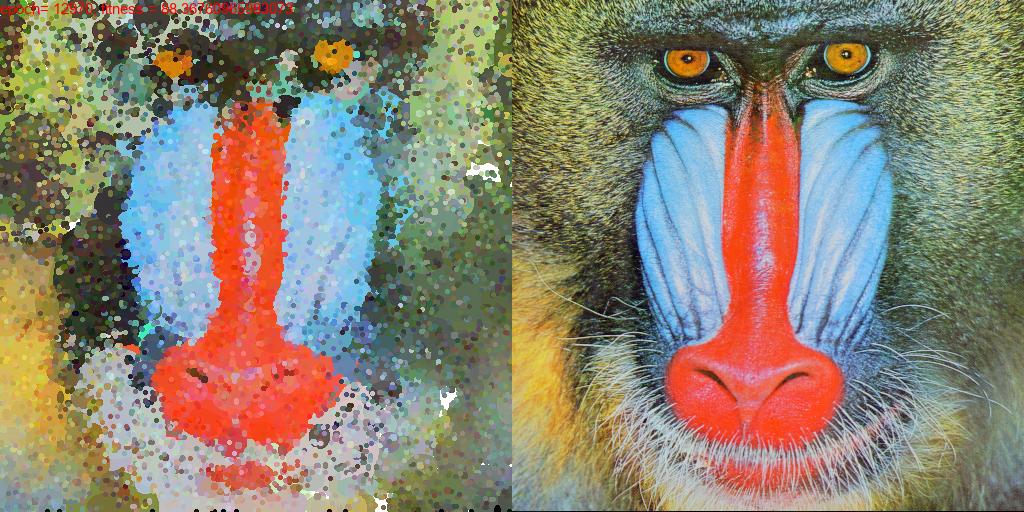

Here's the genetic algorithm. We're going use the features of evolution to generate an image that resembles the reference image, yet we're constrained to use some fixed number of instruments. After about 11 thousand generations and 6 hours (on one processor) the result is something like this: . An organism is an image, which contains genes. In our case, genes are ellipses.
An ellipse consists of other parameters: x and y positions, width, height, color. The algorithm should use lots of these ellipses to draw an image. So the production of the algorithm is always different for the same input and it does not just copy the image and uses some effects. I assume we can call it an art then.

The features we're going to use: selection, crossover and mutation. All in details. Higl level description:

for number of epochs
    select organisms
    breed new, possibly mutated, organisms
    Leave the best in population
select the best image in the last generation

Note: the algorithm described here will be a basic version. There could many modifications.

Quick facts:

Programming language: Python
Image library: Pillow
Drawing with: (sometimes translucent) ellispes with white outlines
Input image type: jpg
Input image preprocessing: no preprocessing, the same image Output image type: png (RGBA)
Output image colors: any Fitness function: Mean squared deviation, each pixel computed
Library used to calculate fitness: numpy

The method of finding right constants: my guts

Installation and running

pip install -r requirements.txt
python genetic_v1.py

Default input: input/reference.jpg

Algorithm

Population

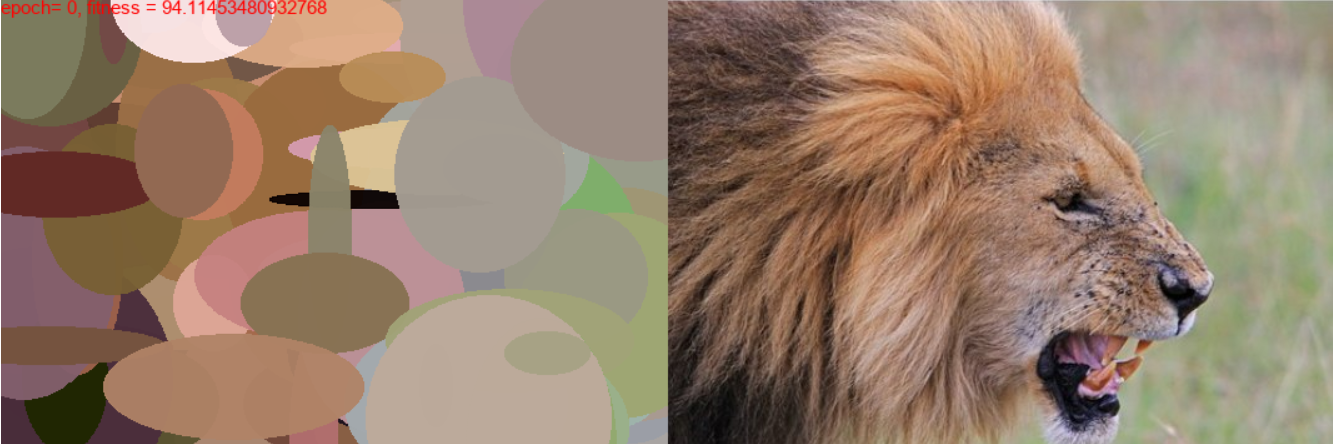

We need to have some number of organisms so they can compete with each other and breed. I keep population size fixed. Initially, population is generated randomly. For example, the best of the grandparents of all images for some image could be:

Genes generation

When a new gene (ellipse) is created, position and shape is choosen at random.
The color is more complicated. Color is has 4 values - RGBA. It means it also can be translucent. There are 2 ways generate a color:

• completely randomly
• depending on a color of a given point in the reference image

Now I opted for the latter since it is quicker. But just picking the same color isn't interesting so let's choose a color which is about the same as in the reference image. So the artist improvises or just cannot pick the same color that it sees. Just like a human would..

Selection

Top N and random M organisms are selected for crossover from the population. We want to the best organisms to breed, but use another heuristic - best images now might not produce better images in the future so we need a bit of randomness in selection too.

def selection(population, matching_pairs_number):
    ...
    top_and_lucky = get_top_and_random_organisms(population, matching_pairs_number)
        i = 0
        while i < matching_pairs_number:
            # CROSSOVER
            pair = top_and_lucky[i], top_and_lucky[i + 1]
            # a pair and a number of children
            children = crossover(pair, 4)
            generation.extend(children)
    		i += 2
    ...

Crossover. For lucky set of selected organisms

Random set of pairs interchange their genes
Set of K organisms is generated from a pair
New generation gets random genes from parents
If parents' genes do not align, every extra gene is also a subject to randomness (whether we choose a gene or leave it behind)

def crossover(parents, children_count):
	parents_genes = get_parents_genes(parents)
	children = []
	for i in range(children_count):
		child_genes = select_random_genes(parents_genes)
		child = Arrancar(child_genes)
		# MUTATION
		if random.random() < mutation_chance or len(child_genes) < 80:
			child.mutate()
		children.append(child)
	return children

Also, crossover is where mutation can happen. When there are not many genes probability of some mutation is 1. I did that just to speed up the process.

Mutation

Organisms can mutate in 8 ways:

• Add a new gene (ellipse)
• Delete a gene
• Delete a gene and add a new gene
• Mutate a gene
• Gene mutation
• There are 4 color parameters
• 2 position parameters (x, y)
• 2 shape parameters (width, height)

def mutate(self):
    ...
    x = random.random()
    if x <= GENE_MUTATION_PROBABILITY:
        # MUTATE EXISTING GENE
        random.choice(self.genes).mutate_ellipse()
    elif x < GENE_ADDITION_PROBABILITY and number_of_genes < MAX_GENES_COUNT:
        self.genes.append(Gene())
    elif x < GENE_DELETION_ADDITION_PROBABILITY:
        if self.genes: self.genes.pop(random.randint(0, number_of_genes - 1))
        self.genes.append(Gene())
    else:
        if self.genes: self.genes.pop(random.randint(0, number_of_genes - 1))
    # why not mutate again?
    if random.random() < 0.1:
        self.mutate()

A gene mutation

def mutate_ellipse(self, choice=random.randint(1, 8)):
    # Mutate different parameter randomly
    if choice == 1:
        self.mutate_color(1)
    elif choice == 2:
        self.mutate_color(2)
    elif choice == 3:
        self.mutate_color(3)
    elif choice == 4:
        self.mutate_color(4)
    elif choice == 5:
        self.mutate_x()
    elif choice == 6:
        self.mutate_y()
    elif choice == 7:
        self.mutate_width()
    elif choice == 8:
        self.mutate_height()

As you can see a gene is complex and contains other parameters that can be called genes as well.

All mutations shift their values according to a normal distribution, where, the mean is the previous value, or just randomly. For example, x position mutation

def mutate_x(self):
    self.x = bound_value(self.x + self.x_change(), MIN_X, MAX_X)
def x_change():
    return random.randint(-X_DELTA, X_DELTA)

Fitness function

Pillow library allows to convert images to numpy arrays. So calculating the mean squared deviation is just done by numpy

def fitness(im1,im2):
	i1 = np.array(im1)
	i2 = np.array(im2)
	return np.mean(np.square(i1 - i2))

So the basic algorithm is covered. The main function could look like this:

for i in range(epochs_number):
    epoch += 1
    population = selection(population, selection_range())

Tuning the algorithm.

Mutation chance changes

If fitnesses don't change enough for a while, there are probably a lot of similar organisms in the population. So the mutation probability is increased, then if the mutation probability is too big, the probability is decreases. What does it mean for a fitness to 'change enough'? I don't know the right answer. I check if the fitness changes by 0.1 for every 50-100 epochs.

Sizes of new generated ellipses change

If fitnesses don't change enough for a while, I don't want to the algorithm to try big ellipses, sicnce they're likely not to change fitness because they affect other areas, which are probably gaining some fitness.

Why does it take so long?

Algorithm: A different implementation of crossover, mutation and representation of genes could speed up the process. In the basic version, the algorithm slows down as the number of genes increases. Compare drawing 30 ellipses vs. drawing 500. One could

• Use a fixed set of colors and shapes of ellipses.
• Use nearly complete state formulation.
• Use the exact colors as in the original one. The list goes on.

Constants: There a lot of parameters (the size of the population, selection range, ect.) which I believe can be optimized. Hardware: Everything was copmuted using one core of my laptop. No multiprocessing.

"Cheating"

Another version of the algorithm. After some number of epochs, one could save the generated image and next time draw on top of it, getting rid of control on previously generated genes.

Other inputs with different algorithms / constants:

Original:

If we pick the same colors:

Big circles:

Squished circles:

After applying "cheating" described above and using smaller circles if the algorithm is stuck:
