CPU vs NPU Visualizer

A 3D interactive demonstration comparing Central Processing Unit (CPU) and Neural Processing Unit (NPU) architectures for AI workloads. This application visualizes how different processor architectures handle tasks—comparing the serial, high-latency power of CPUs against the massive parallel efficiency of NPUs.

It features real-time 3D simulation and uses the Google Gemini API to provide dynamic, context-aware educational explanations based on the current simulation state.

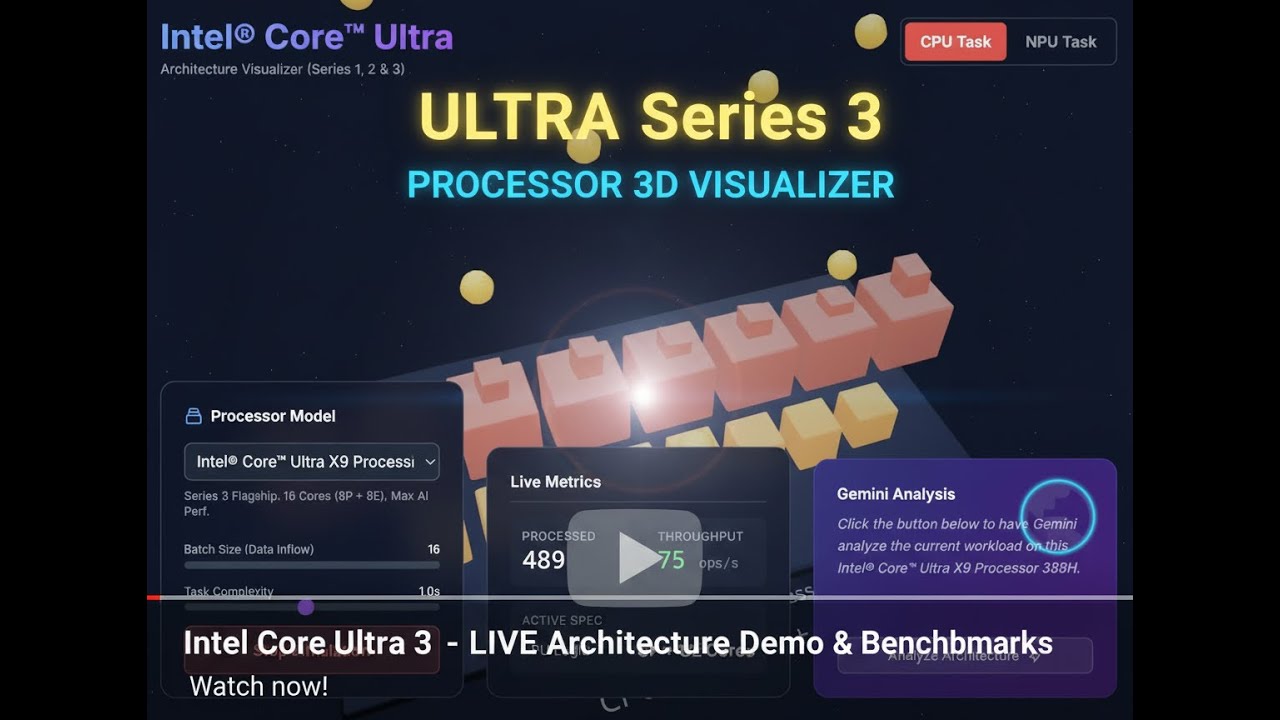

📺 Demo Video

Watch the video above to see the simulation in action.

📸 Screenshots

CPU Mode (Serial Processing)	NPU Mode (Parallel Processing)
Visualizing high-speed individual cores	Visualizing massive parallel throughput

AI Analysis	Simulation Controls
Gemini explains performance metrics	Adjust batch size and complexity

✨ Features

• Interactive 3D Visualization: Built with React Three Fiber, allowing users to orbit and inspect the processor architectures.
• Dual Architecture Modes:
  • CPU: Simulates 4 powerful cores optimized for sequential processing.
  • NPU: Simulates a 64-core grid optimized for parallel batches.
• Real-time Physics Simulation: Visualizes data particles flowing into cores, processing, and exiting, with accurate throughput calculation.
• Dynamic AI Insights: Integrated with Google Gemini 2.0 Flash to analyze current simulation metrics (throughput, batch size) and explain why one architecture is performing better than the other.
• Customizable Workloads: Adjust "Batch Size" and "Task Complexity" on the fly to see how they impact utilization and saturation.

🛠️ Tech Stack

• Frontend: React 19, TypeScript, Tailwind CSS
• 3D Engine: Three.js, @react-three/fiber, @react-three/drei
• AI: Google GenAI SDK (Gemini 2.0 Flash)
• Build/Imports: ES Modules via esm.sh (No bundler required for dev)

🚀 How to Run

Prerequisites

• A modern web browser (Chrome, Edge, Firefox).
• A Google Gemini API Key.

Steps

1. Clone the repository (or download the files).

2. Set your API Key:

   • The application expects process.env.API_KEY to be available.
   • Note: Depending on your environment, you may need to manually replace process.env.API_KEY in services/gemini.ts with your actual key string for local testing, or use a .env loader if using a build tool.

3. Serve the application:

   • Because this project uses ES Modules directly in the browser, you must serve it via a local HTTP server (opening index.html directly as a file won't work due to CORS policies).

   Using Python:

   python3 -m http.server 8000

   Using Node.js (http-server):

   npx http-server .

4. Open in Browser:

   • Navigate to http://localhost:8000.

🧠 Simulation Logic

• CPU: High clock speed (fast individual processing) but low concurrency (4 cores). Best for low batch sizes and complex serial tasks.
• NPU: Lower clock speed per core but massive concurrency (64 cores). Best for high batch sizes (like matrix multiplications in AI models).

📄 License

MIT License
