A robust, interactive visualization tool for the A* pathfinding algorithm, built with React and TypeScript.

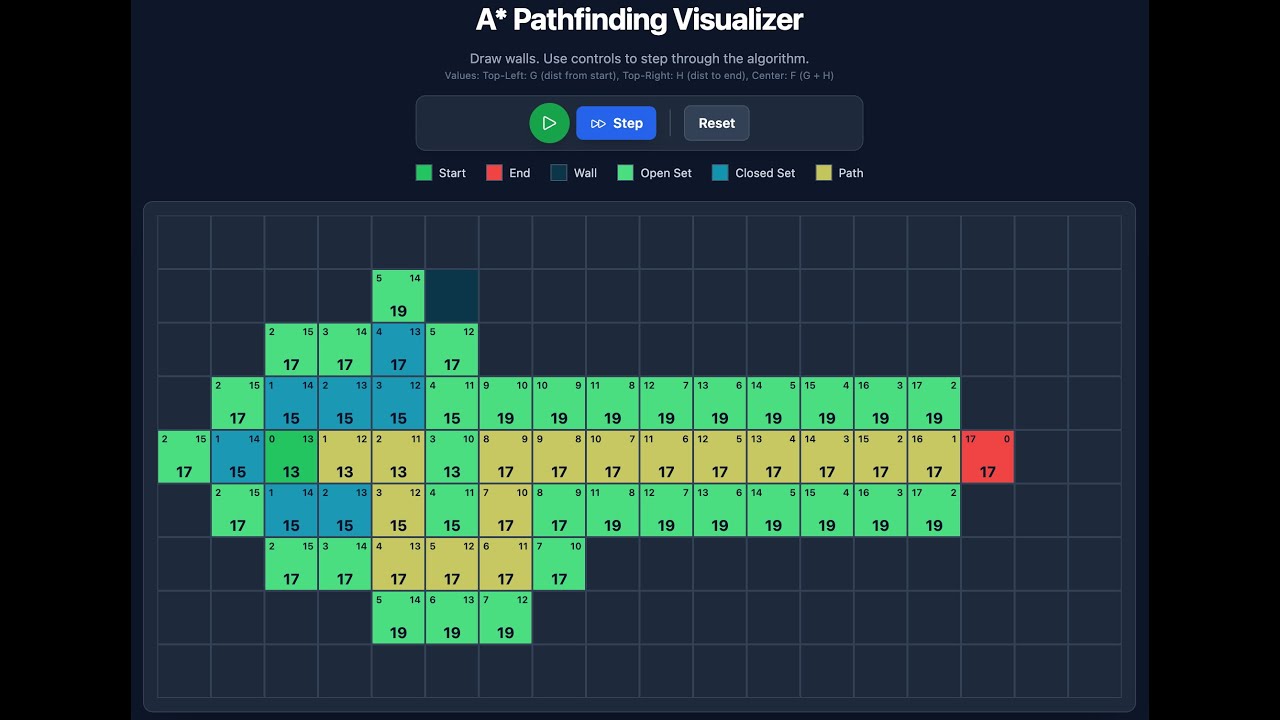

Watch the video above to see the simulation in action.
- Draw Walls: Click and drag on the grid to create obstacles.
- Playback Control: Play, pause, and reset the visualization.
- Step-Through: Manually advance the algorithm one step at a time to understand the decision-making process.
Each node displays real-time pathfinding data:
- F-Cost (Center): The total cost function
F = G + H. - G-Cost (Top-Left): The distance from the start node.
- H-Cost (Top-Right): The heuristic estimated distance to the target.
- Open Set (Green): Nodes currently being evaluated.
- Closed Set (Teal): Nodes that have been visited.
- Shortest Path (Yellow): The optimal path found by the algorithm.
- Walls (Dark Blue): Impassable terrain.
- React: Component-based UI structure.
- Tailwind CSS: Modern, utility-first styling.
- TypeScript: Type-safe logic for the A* algorithm.
- Generator Functions: Used to create a pausable and controllable algorithm loop.
The project uses a custom implementation of A* that yields AlgoStep objects via a generator function (astarGenerator). This allows the React component to maintain control over the execution flow, enabling the "Step" and "Pause" features without complex state management or setTimeout chains inside the algorithm itself.
