FRC Team 190 2k25 Robot Code - Technical Overview

This repository contains the complete software for the FRC Team 190 2k25 robot. This document outlines the core architectural decisions, subsystem interactions, and operational strategies.

---

1. Code Philosophy and Structure

Our codebase is designed with a modular, scalable architecture that reflects best practices in FRC programming. The primary goal is to create clean, maintainable, and easily navigable code, adhering to the standards outlined at team-190.github.io/190-Robot-Code-Standards/.

• Command-Based Framework: We utilize WPILib's command-based framework to structure robot actions. The commands package contains command classes that control one or more subsystems, allowing for complex sequences and parallel execution.
• AdvantageKit Integration: The main robot class (Robot.java) extends LoggedRobot to integrate AdvantageKit for advanced logging, telemetry, and replay. This is critical for diagnosing issues and optimizing performance.
• Robot Container: RobotContainer.java is the central hub for connecting joystick inputs to commands, configuring autonomous routines, and managing interactions between subsystems.
• Constants Class: The Constants.java file centralizes operational parameters like motor speeds and sensor thresholds, making it easy to switch between different robot versions and operating modes (e.g., REAL, SIM, REPLAY).

---

2. Multi-Robot Architecture & Hardware Abstraction

A key feature of our project is the support for multiple robot versions within a single codebase.

• Shared Codebase: This allows us to develop and test multiple robot designs (v0_funky, v1_stackUp, v2_redundancy) while keeping all code in one place. Shared components (like drive) are centralized, while robot-specific subsystems are isolated in their respective packages.
• Hardware Abstraction Layer (IO Classes): Each subsystem is paired with an IO interface (e.g., ModuleIO, ElevatorIO) that defines its capabilities. We have multiple implementations for this interface:
  • ModuleIOTalonFX: For CTRE motor controllers.
  • ModuleIOSim: For running simulations without hardware. This abstraction allows for development and testing in simulation before deploying to a physical robot, streamlining our workflow.

---

3. Deployment, Security, and Version Control

• Automatic Deploy Verification: To prevent deploying incorrect code to our competition robot, we use a "two-factor authentication" system. Each robot has a unique identifier string. During deployment, a script cross-references this ID with the desired robot defined in the code. The deployment only proceeds if they match.
• GitHub Workflow: We use a public GitHub repository for collaboration.
  • main branch: Hosts tested, stable code.
  • development branch: Hosts code currently being worked on.
  • feature-* branches: Used for developing new features. Work is merged into development via pull requests after review and testing.
  • Issues: We use GitHub Issues to track bugs, features, and requests from other sub-teams.

---

4. Superstructure State Machine (V2_Redundancy)

The V2_Redundancy robot utilizes a finite state machine (FSM) to manage the complex interactions between its scoring and intake mechanisms, preventing collisions and ensuring safe, repeatable movements. This was inspired by FRC 6328

• V2_RedundancySuperstructure.java: The central class that orchestrates all other subsystems. It uses a JGraphT graph to represent all possible states and transitions.
• V2_RedundancySuperstructureStates.java: An enum defining every possible state of the robot (e.g., STOW_DOWN, INTAKE_FLOOR, SCORE_L4).
• V2_RedundancySuperstructurePose.java: Defines the physical setpoints (positions) for each subsystem (Elevator, Arm, Intake, Funnel) that correspond to a given state.
• V2_RedundancySuperstructureAction.java: Defines the active behaviors (roller speeds) for each subsystem in a given state.

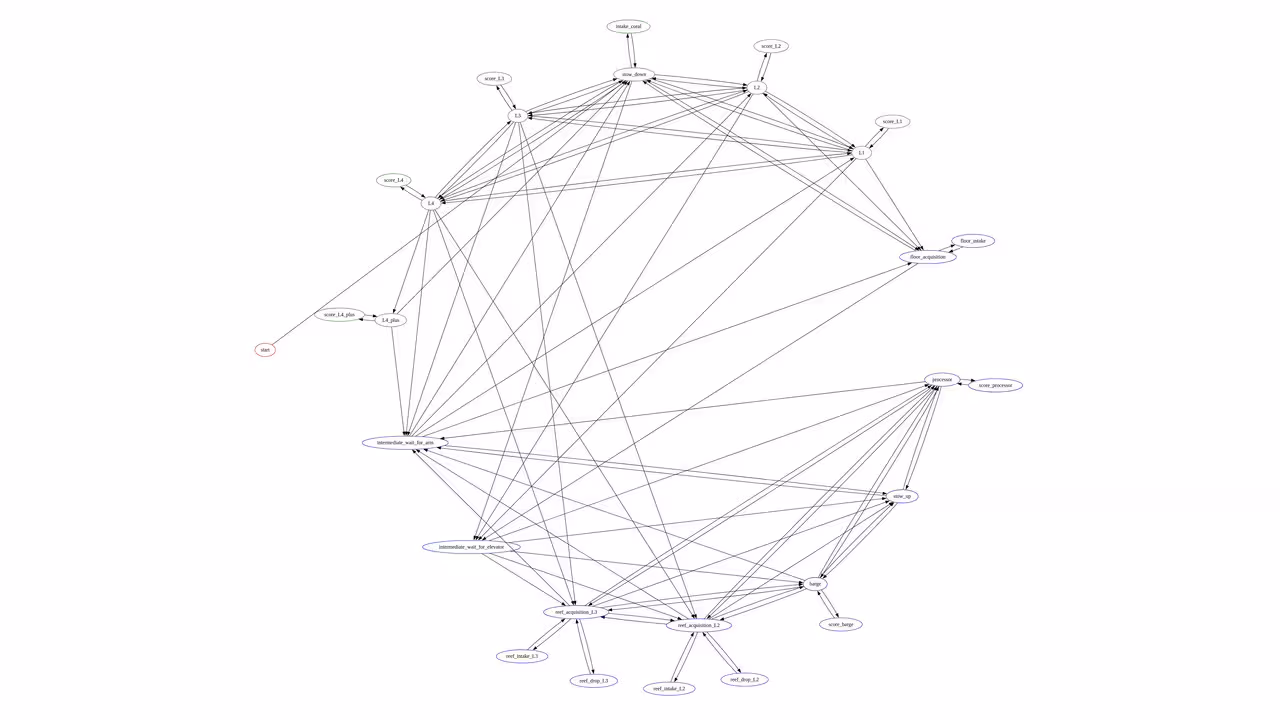

• V2_RedundancySuperstructureEdges.java: This crucial class builds the state graph. It defines every valid transition (edge) between states and associates a Command with each one. The FSM uses a Breadth-First Search (BFS) on this graph to find the shortest path from the current state to the desired goal state, scheduling the necessary commands to execute the transition safely.

---

5. Subsystem Breakdown

Drivetrain

• Function: Controls the 4-module swerve drive using Kraken X60 motors for both drive and steering.
• Odometry:
  • Internal: Uses motor feedback (position and velocity) to determine field-relative position. Prone to drift from wheel slip and collisions.
  • External (Vision Correction): A 3-camera Limelight system detects AprilTags to continuously correct for odometry drift, enhancing autonomous consistency.
• Interaction: Provides pose data to RobotStateLL. Controlled by DriveCommands in teleop and Choreo trajectories in auto.

Vision (Limelight)

• Function: Provides precise robot localization.
• Hardware: Three Limelight cameras (one center, two angled on edges).
• Logic: Uses MegaTag2 to get pose estimations from each camera. Tags that are closer are trusted more (lower standard deviation). This fused data corrects the internal odometry in RobotStateLL.

Elevator

• Function: Manages the primary vertical lift for scoring.
• Hardware: Multiple CTRE Kraken X60 motors.
• Interaction: A core component of the Superstructure, moving to heights defined by the current V2_RedundancySuperstructurePose.

Funnel

• Function: Controls the pivoting "Clap Daddy" mechanism to guide and secure game pieces.
• Hardware: CTRE Kraken X60 motor, CANcoder for absolute position.
• Interaction: Coordinated by the Superstructure to open for intake and close to secure pieces.

Manipulator (V2)

• Function: Primary scoring and intake mechanism for "Coral" and "Algae".
• Hardware: CTRE Kraken X60 motors for arm rotation and roller control.
• Interaction: Moves to various angles (ManipulatorArmState) as directed by the Superstructure.

Intake (V2)

• Function: A linear extending intake for floor pickup of game pieces.
• Hardware: CTRE Kraken X60 motors for extension and roller.
• Interaction: Extends and retracts based on the Superstructure state, primarily for INTAKE_FLOOR.

Climber

• Function: Manages the endgame climb.
• Hardware: CTRE Kraken X60 motor, redundant digital inputs for state detection.
• Interaction: Sequenced by CompositeCommands to ensure other mechanisms are stowed before climbing.

LEDs

• Function: Provides visual feedback to drivers.
• Hardware: Addressable LED strip.
• Interaction: Reads state from RobotStateLL (e.g., isAutoAligning, hasAlgae) to display patterns.

---

6. Autonomous and Teleop Control

Autonomous

• Path Generation: We use Choreo to design smooth, efficient, and constraint-aware autonomous trajectories.
• Path Execution: The LoggedAutoFactory loads these trajectories. AutonomousCommands.java sequences them with other actions (like intake/scoring) to create full auto routines.
• Auto-Alignment: Before scoring, a vision-based command (DriveCommands.autoAlignReefCoral) uses Limelight data to precisely align the robot to the reef, compensating for any path inaccuracies.

Teleoperated Control

• Two-Driver System: We use two Xbox controllers for intuitive control.
  • Driver: Manages robot movement (translation and rotation) and triggers high-level intake/scoring sequences.
  • Operator: Manages the end-effector functions (Elevator height, Funnel, Manipulator, Climber).
• Game Piece Sensing (V2):
  • Coral: Detected by monitoring current spikes on the intake motor when it's trying to maintain position against the coral piece. A RobotState variable ensures this logic only runs when an intake command is active.
  • Algae: Detected by monitoring the manipulator roller's velocity and acceleration. When algae is detected, a dynamic holding voltage is applied to the roller to prevent it from slipping, adjusting based on motor current.
