Threat Intelligence Dashboard

A comprehensive threat intelligence platform that monitors and analyzes security threats. This project provides a user-friendly interface for visualizing attack patterns, analyzing IP threats, and monitoring security events.

---

Project Snapshots

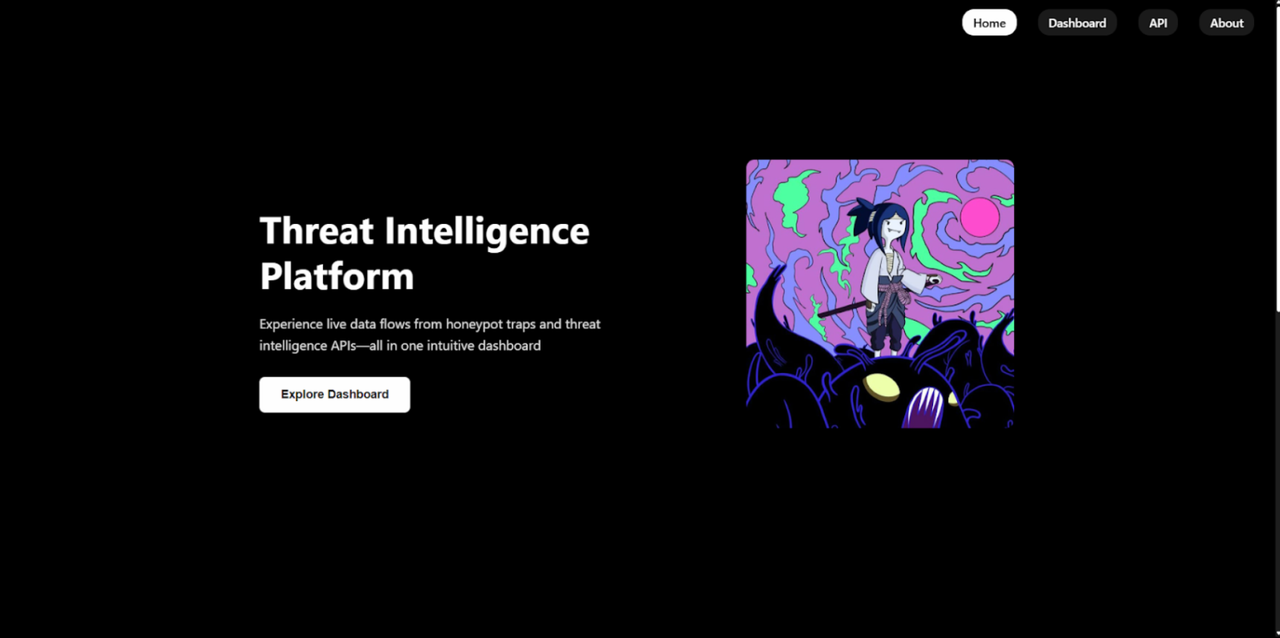

Hero Section

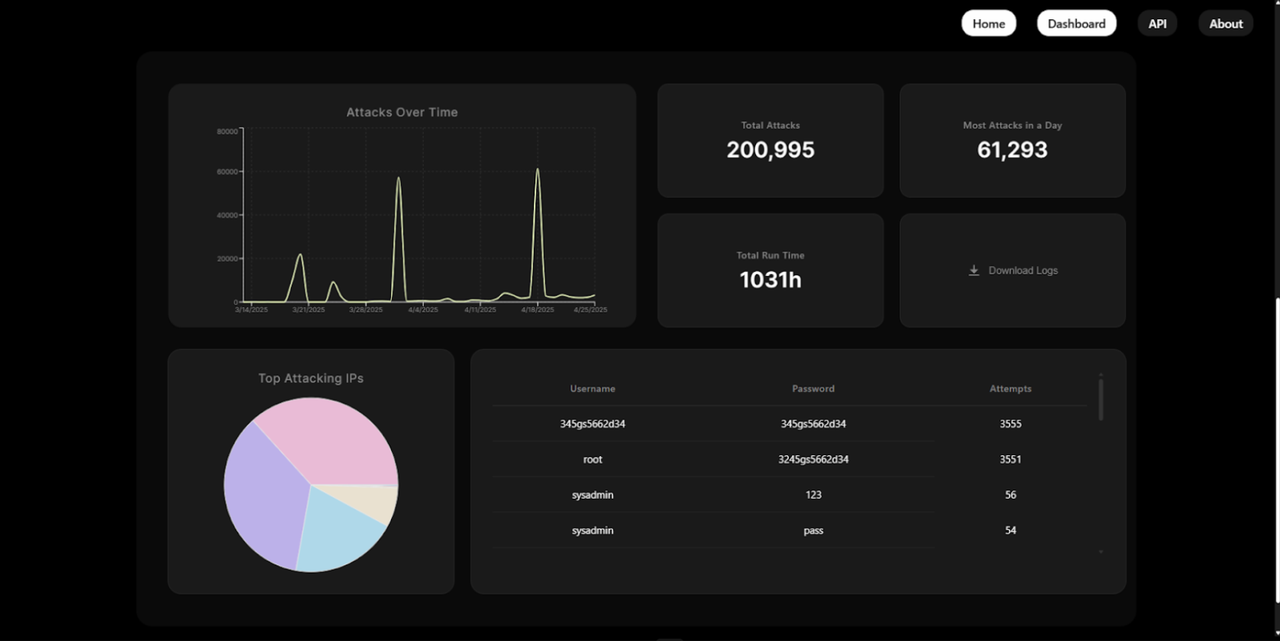

Dashboard

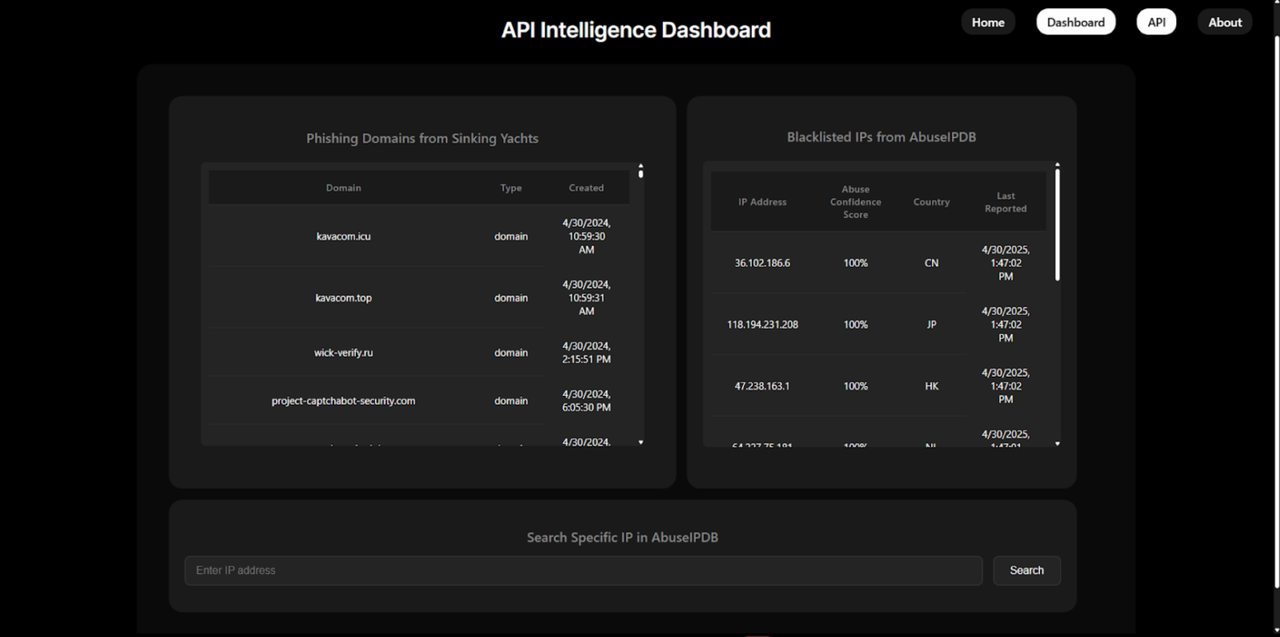

API Intelligence Page

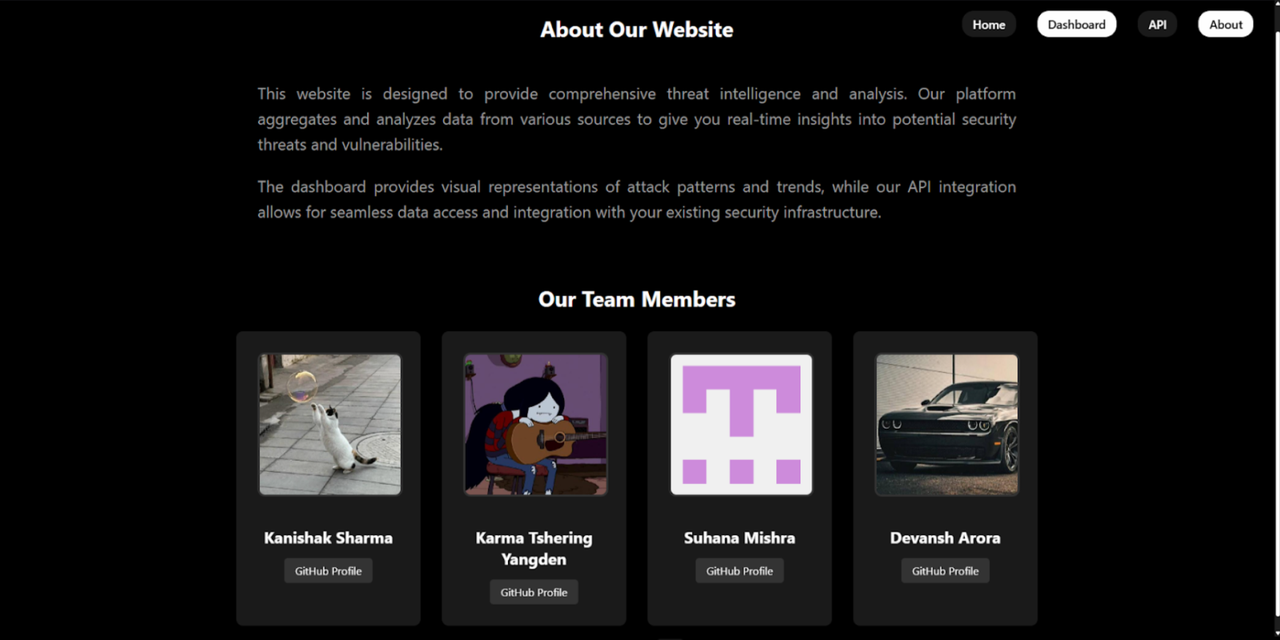

About Page

---

Features

• Real-time Attack Monitoring

  • Line chart showing attack frequency over time
  • Interactive visualization of attack patterns
  • Detailed statistics and metrics

• IP Intelligence

  • Top attacking IPs visualization
  • Detailed IP threat analysis
  • Blacklisted IP tracking

• Credentials Monitoring

  • Real-time tracking of credential attempts
  • Username/password attempt statistics
  • Attack pattern analysis

• User-Friendly Interface

  • Responsive design
  • Intuitive navigation
  • Dark theme for better visibility

---

Tech Stack

• Frontend

  • React.js
  • Chart.js & React-Chartjs-2 for visualizations
  • React Router for navigation
  • Fetch API for data requests
  • Hosted on Netlify

• Backend

  • Node.js with Express.js
  • MongoDB Atlas for cloud database
  • RESTful API architecture
  • Hosted on Render

• Infrastructure

  • Docker for containerization
  • Jenkins for CI/CD
  • AWS EC2 for Honeypot deployment
  • Cowrie Honeypot for threat data collection

---

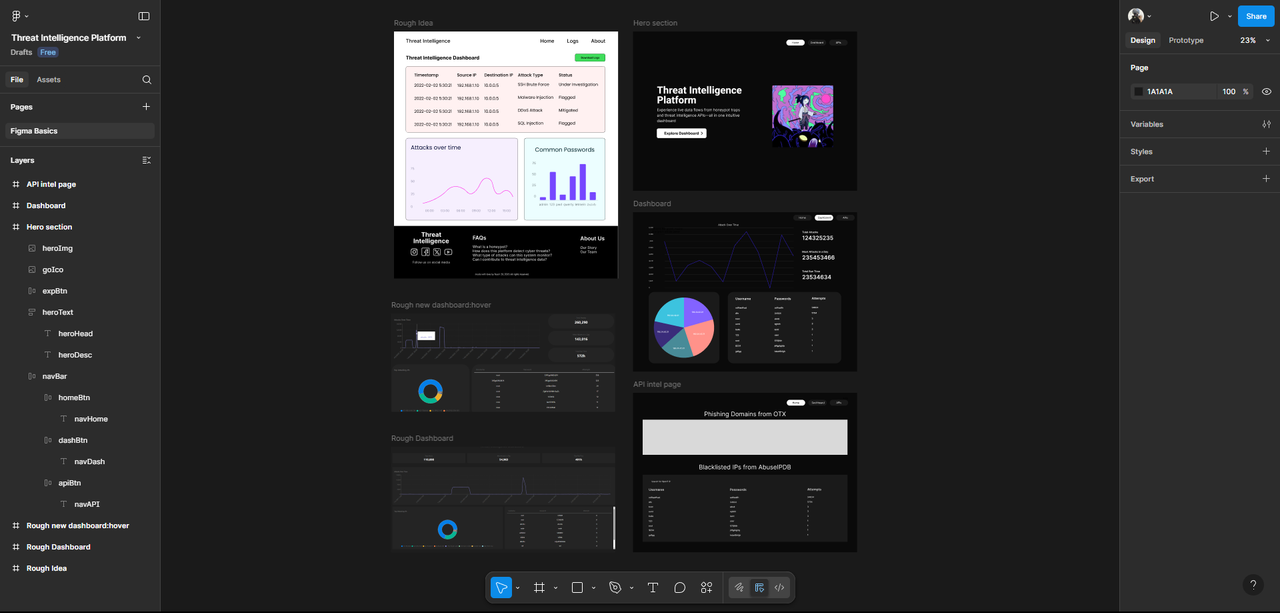

Design Planning

We designed our UI/UX using Figma to visualize the user flow and layout. Focus was placed on dark theme & usability.

---

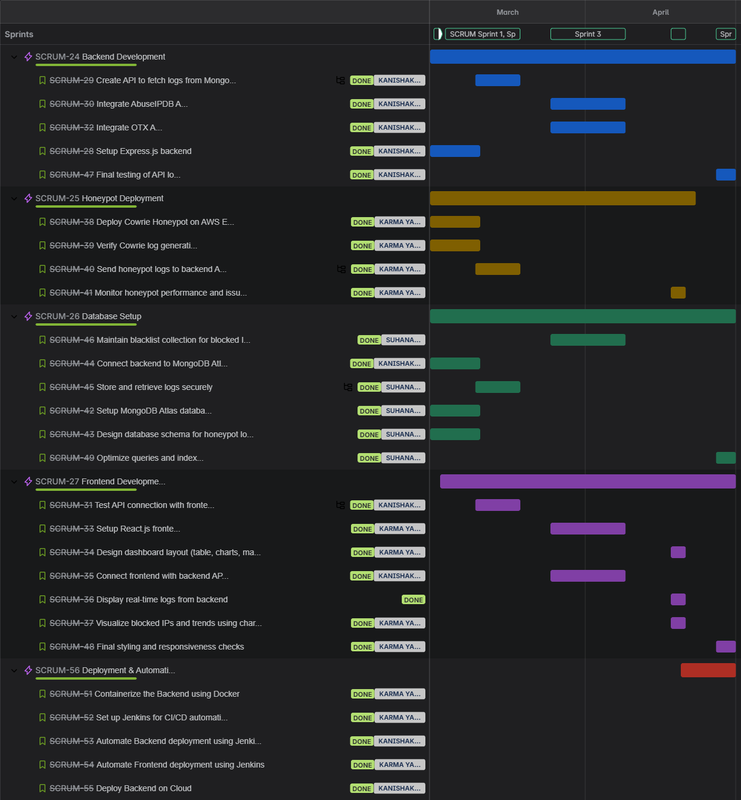

Project Management

We used Jira for agile task management, sprint planning, and milestone tracking.

---

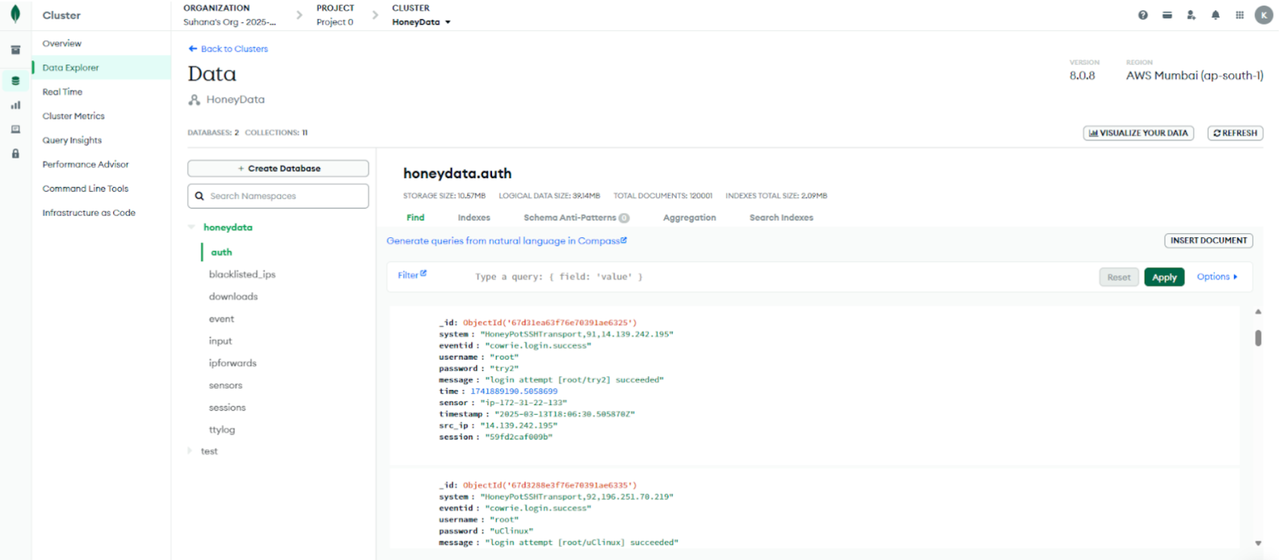

Database View

MongoDB Atlas was used as the primary cloud database solution.

---

DevOps & CI/CD

We implemented DevOps practices to streamline development and deployment.

• Docker was used to containerize frontend and backend for local development.
• Jenkins handled CI/CD automation, auto-deploying on GitHub pushes.
• .env configuration supported local, Netlify, Render, and Jenkins builds.

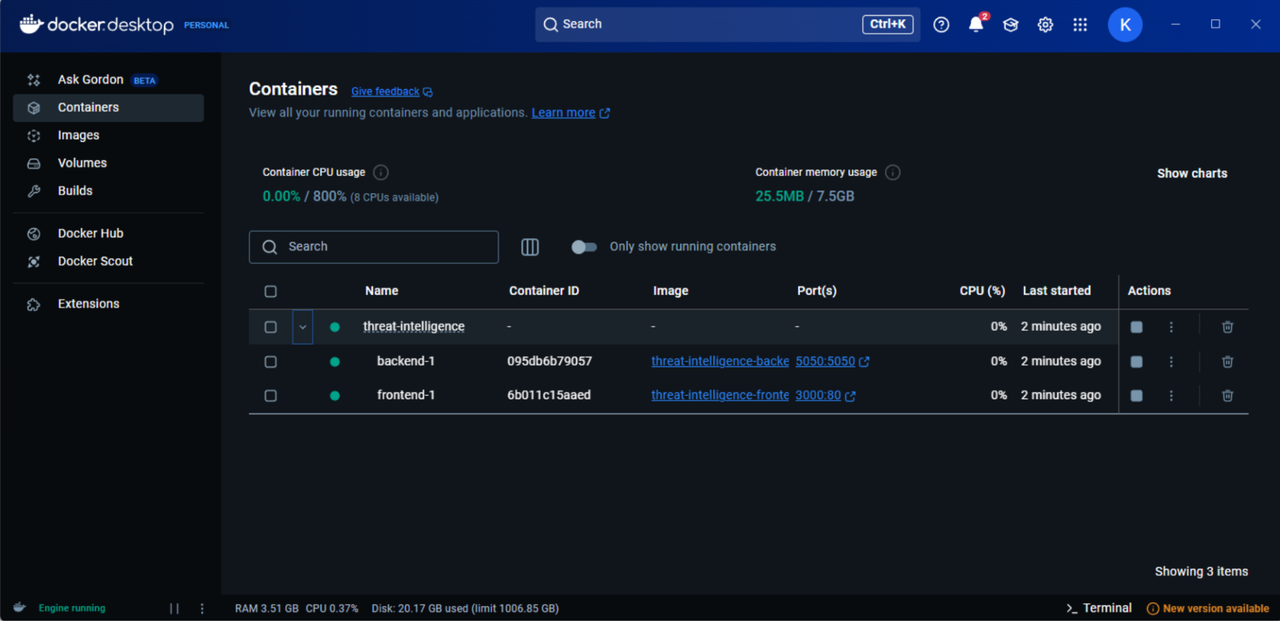

Docker Containers (Frontend & Backend)

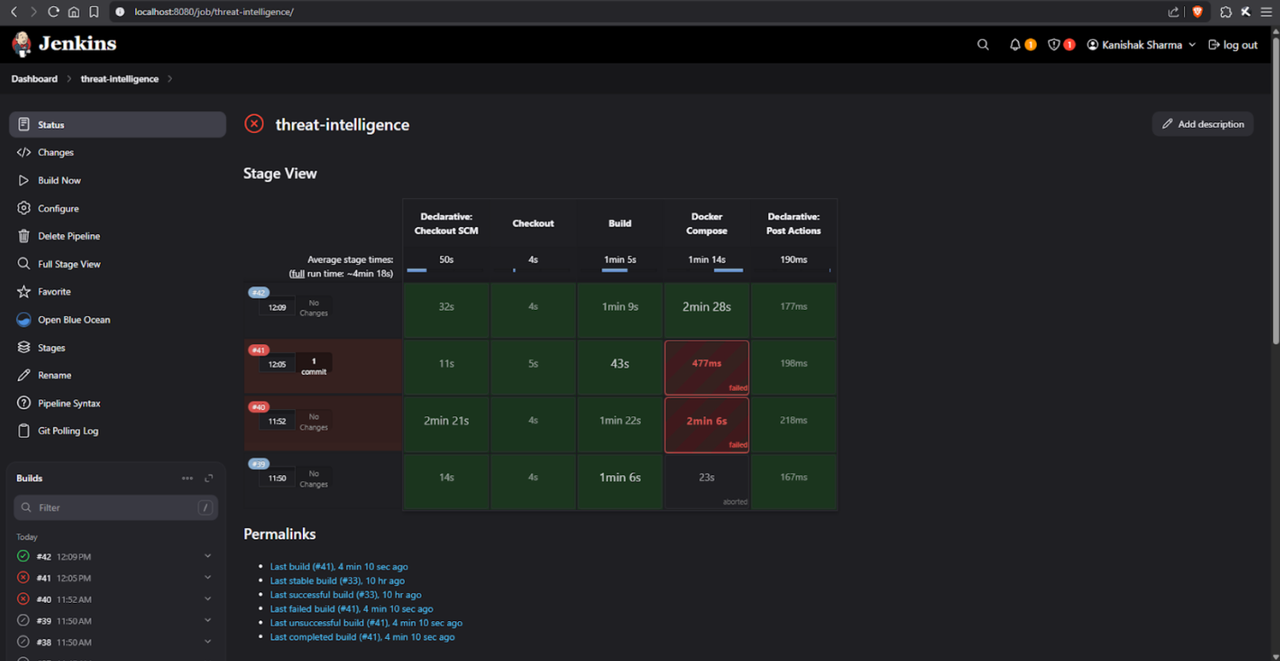

Jenkins Pipeline

---

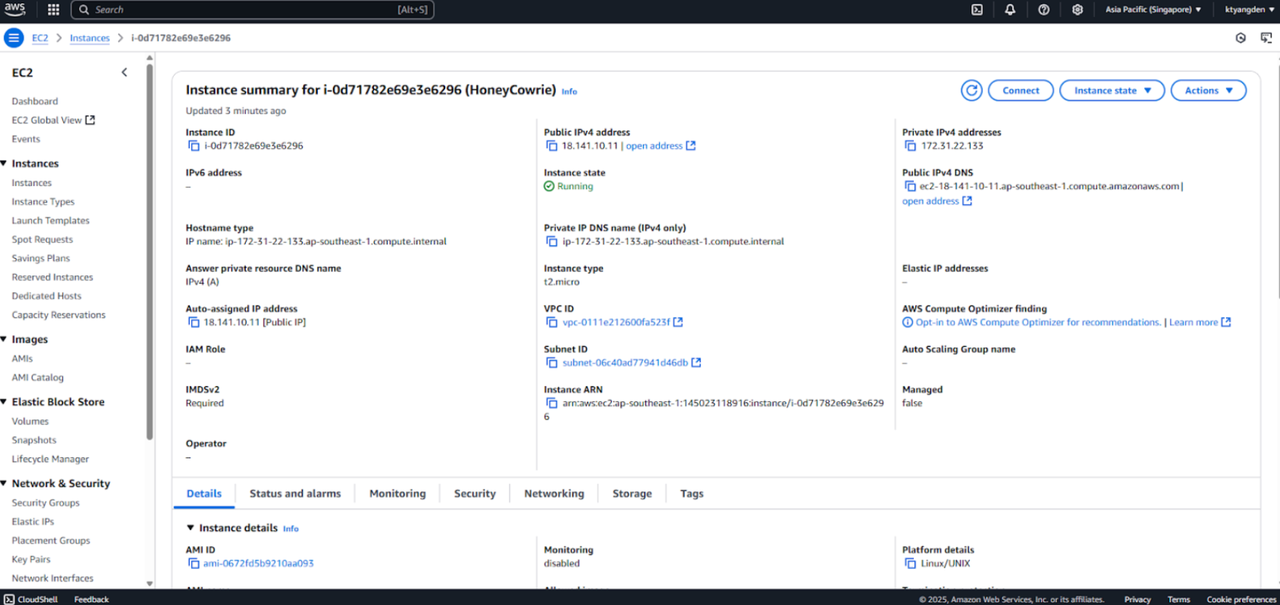

Honeypot Deployment (AWS)

We deployed a Cowrie honeypot on AWS EC2 to collect real-world attack data.

---

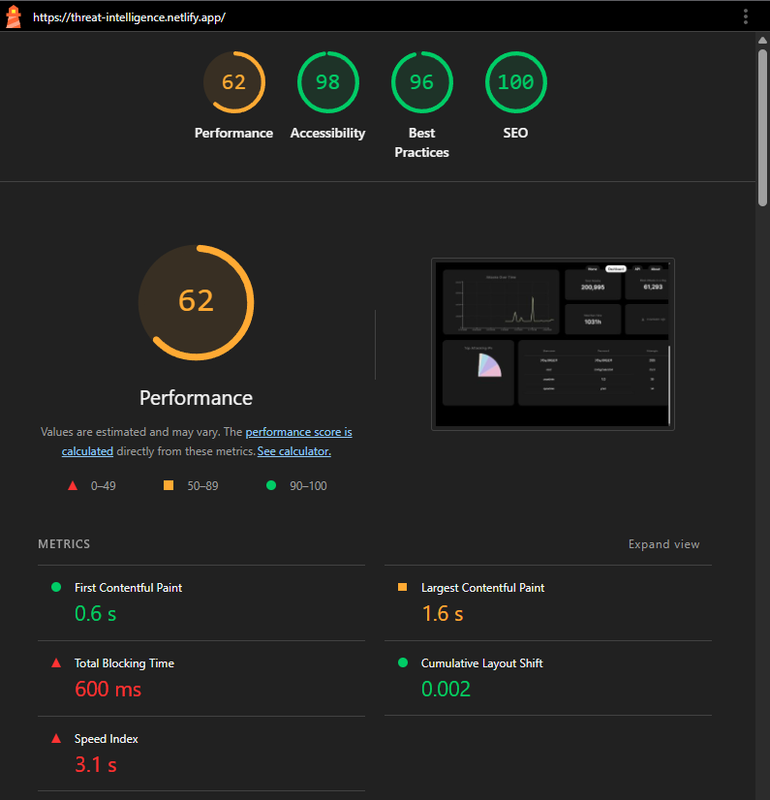

Lighthouse Report

We ran a Lighthouse audit on the deployed application to assess its performance and quality.

Category	Score
Performance	62
Accessibility	98
Best Practices	96
SEO	100

Audited using Chrome DevTools in Desktop mode

What We Learned

• While our scores in accessibility, best practices, and SEO were strong, we identified room for improvement in performance.
• Key issues included heavy JavaScript, unoptimized images, and blocking main-thread work.
• From this audit, we learned the importance of optimizing assets, reducing bundle sizes, and improving load efficiency — insights we'll apply to future projects for a better user experience.

---

Getting Started

Prerequisites

• Node.js (v14 or higher)
• MongoDB Atlas account
• Docker (optional)

Installation

# 1. Clone the repository
git clone https://github.com/Kanishak-xd/threat-intelligence.git
cd threat-intelligence

# 2. Install frontend dependencies
npm install

# 3. Install backend dependencies
cd backend
npm install

# 4. Set up MongoDB Atlas connection

# 5. Start the backend server
cd backend
node server.js

# 6. Start the frontend development server
cd ..
npm start

# 7. Access the application
http://localhost:3000

---

Docker Deployment

# Build and run using Docker Compose
docker-compose up --build

# Access the application
http://localhost:3000

---

Project Structure

threat-intelligence/
├── src/
│   ├── components/
│   │   ├── AttackChart.js
│   │   └── AttackChart.css
│   ├── App.js
│   ├── App.css
│   └── apintel.js
├── backend/
│   ├── server.js
│   ├── mongoFetch.js
│   ├── processLogs.js
│   └── package.json
├── public/
├── package.json
└── README.md

---

API Endpoints

• GET /api/logs - Fetch security logs
• GET /api/attack-data/aggregated - Get aggregated attack data
• GET /api/ip-intel - Get IP intelligence data

---

License

MIT License
