Introduction

This project provides a complete IoT tank control system combining embedded hardware control with cloud-based orchestration. The architecture spans from low-level motor control on ESP32/ESP8266 platforms using dual L298N H-bridges, through LoRa wireless communication with AES-256-CBC encryption, up to cloud services for real-time command distribution and telemetry streaming.

The system uses Redis Streams as the event backbone, enabling multiple services to coordinate tank control, telemetry broadcasting, and web-based monitoring through a modern microservices architecture deployed on AWS Elastic Beanstalk.

---

System Architecture

Hardware Layer (RX - Tank Receiver)

• ESP32/ESP8266 microcontroller running the tank firmware
• L298N Dual H-Bridge for motor control with PWM speed regulation
• LoRa transceiver (SX1276/SX1278) for long-range wireless communication
• TankShift C++ library providing smooth motor ramping and tank-style movement
• AES-256-CBC encryption for secure command reception
• Connects to WiFi and establishes WebSocket connection to Control Broker

Communication Layer (TX - LoRa Gateway)

• LoRa Transmitter device with physical controls or web interface
• AES-256-CBC encryption matching receiver configuration
• Optional standalone operation or integration with cloud services
• Provides REST endpoint (/cmd) for remote command injection

Cloud Services Layer

Control Broker Service

WebSocket Gateway managing real-time tank connections:

• Maintains persistent WebSocket connections with tank devices
• Receives commands from Redis tank_commands stream
• Routes commands to appropriate tank via WebSocket
• Publishes tank status updates to Redis tank_status stream
• Accepts radar sensor feeds on /ws/radar/source/{source_id}
• Rebroadcasts radar data to listeners at /ws/radar/listener
• Stores radar sweeps to Redis tank_radar stream
• Handles connection lifecycle (registration, heartbeat, disconnection)
• Deployed on AWS Elastic Beanstalk

Visual Controller Service

Web UI and REST Gateway for human operators:

• Provides interactive browser-based controller interface
• REST API for command submission (POST /command/{tank_id})
• Writes commands to Redis tank_commands stream
• Subscribes to Redis tank_status stream for telemetry
• WebSocket endpoint (/ws/ui/{tank_id}) for real-time UI updates
• Deployed on AWS Elastic Beanstalk

Event Streamer (Redis Streams)

Distributed message backbone using AWS ElastiCache (Valkey):

• tank_commands stream: Command queue from UI to tanks
• tank_status stream: Telemetry flow from tanks to monitoring clients
• Provides durability, ordering, and fan-out capabilities
• Enables decoupled service communication
• TLS encryption (rediss://) for secure data transport

Data Flow

[Tank Device (RX)] ←→ WebSocket ←→ [Control Broker] ←→ Redis Streams ←→ [Visual Controller] ←→ HTTP/WS ←→ [Browser UI]
         ↑                                                       ↑
    LoRa (encrypted)                                    Commands/Telemetry
         ↑                                                       ↓
  [LoRa Transmitter (TX)]                              [Redis Streams (Valkey)]

Command Path: Browser → Visual Controller → Redis tank_commands → Control Broker → WebSocket → Tank Device
Telemetry Path: Tank Device → WebSocket → Control Broker → Redis tank_status → Visual Controller → Browser

---

Features

Hardware Control

• Dual Motor Control: Independent PWM speed regulation (0-255) per motor
• Smooth Transitions: Configurable ramping between speed changes
• Tank-Style Movement: Forward, backward, pivot left/right, gradual turns
• TankShift Library: Platform-independent C++ API for ESP8266/ESP32
• Ultrasonic Radar: HC-SR04 sensor on SG90 servo for 180° environment scanning
• Real-Time Telemetry: Radar sweep data streamed via WebSocket to Control Broker

Secure Communication

• AES-256-CBC Encryption: All LoRa commands encrypted end-to-end
• CRC32 Validation: Ensures data integrity across wireless transmission
• Sequence Tracking: Prevents replay attacks and duplicate command processing
• Magic Header & Version Control: Validates protocol compatibility
• TLS/SSL: Secure Redis connections (rediss://) for cloud communication

LoRa Wireless Control

• Long-Range Operation: Control tanks from hundreds of meters away
• Low Latency: Fast command execution for responsive control
• Frequency Options: 433 MHz, 868 MHz, or 915 MHz regional support
• Adjustable Parameters: Configurable spread factor, bandwidth, and transmit power

Cloud Architecture

• Microservices Design: Decoupled Control Broker and Visual Controller services
• Redis Streams: Durable, ordered message queues with fan-out capabilities
• WebSocket Gateway: Real-time bidirectional communication with hardware
• REST API: Simple HTTP interface for command submission
• Elastic Beanstalk Deployment: Auto-scaling, load balancing, health monitoring
• AWS ElastiCache (Valkey): Managed Redis-compatible event backbone

🔧 Shared Protocol Library

The ControlProtocol.h header provides a standardized communication framework:

• Platform-Independent: Works across ESP8266, ESP32, and Arduino-compatible boards
• Compact Frame Format: 16-byte encrypted packets minimize bandwidth
• Command Set: Stop, Forward, Backward, Left, Right, SetSpeed
• Easy Integration: Include once, use everywhere

---

Core Components

L298N Dual H-Bridge

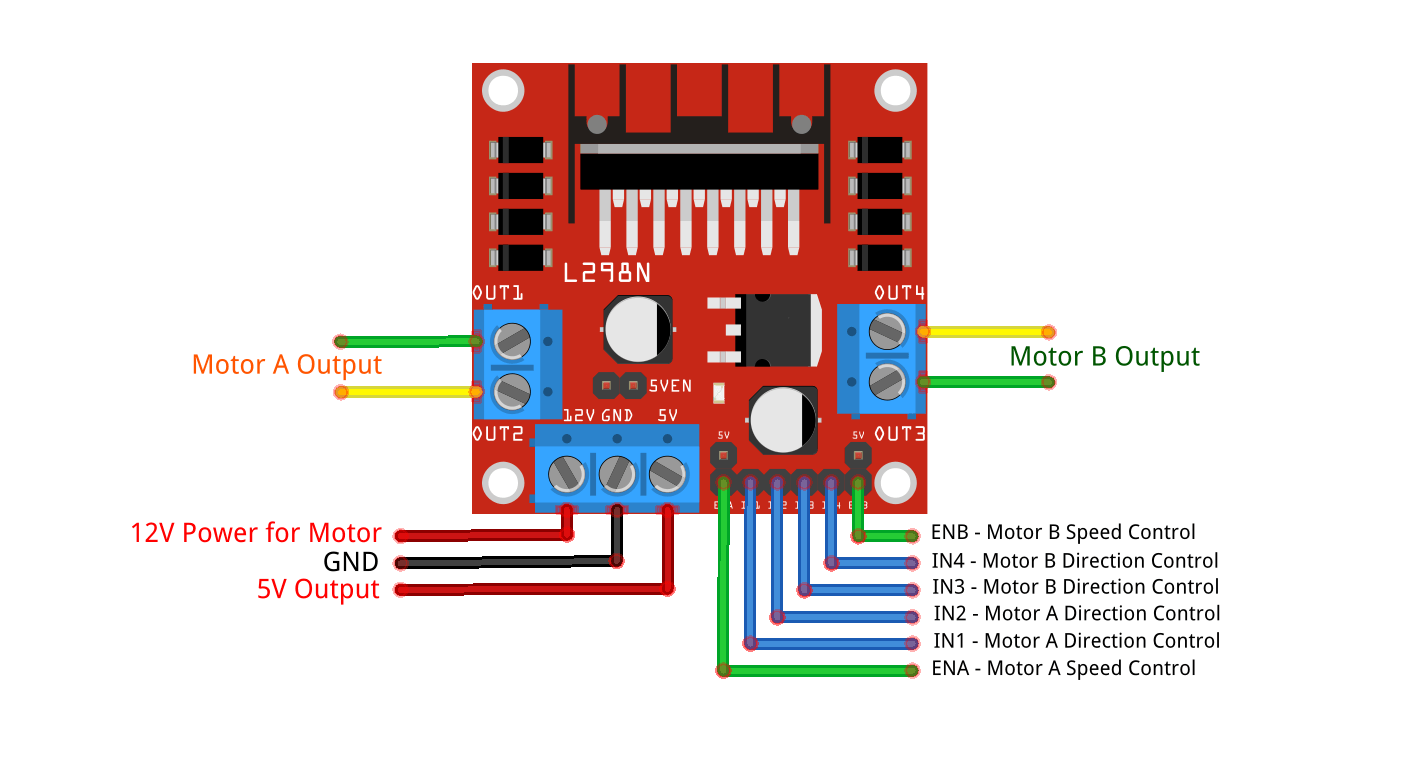

The L298N exposes two identical H bridges. Each side needs:

• IN1 / IN2 / IN3 / IN4 to choose direction
• ENx to gate power (HIGH = run, LOW = stop) (can be PWM modulated for speed control)

The helper class toggles those pins directly and drives the enable lines with PWM, ramping between targets so direction changes feel smooth.

LoRa Transceiver Module

Supports common LoRa modules (SX1276/SX1278-based):

• Frequency: 433 MHz, 868 MHz, or 915 MHz depending on region
• Spread Factor: Configurable for range vs. speed tradeoff
• Bandwidth: Adjustable based on interference environment
• Output Power: Configurable transmission power

---

Encryption Details

• Algorithm: AES-256 in CBC mode
• Key Size: 256-bit (32 bytes)
• IV Size: 128-bit (16 bytes)
• Block Size: 16 bytes (matches frame size)

---

Pinout & Connections

Motor Controller (Receiver)

Signal	L298N Pin	ESP8266 Pin	ESP32 (LilyGO) Pin
Motor A PWM	ENA	D7	25
Motor A Direction control 1	IN1	D2	22
Motor A Direction control 2	IN2	D1	21
Motor B PWM	ENB	D8	14
Motor B Direction control 1	IN3	D5	13
Motor B Direction control 2	IN4	D6	15

LoRa Module Connections

LoRa Pin	ESP8266 Pin	ESP32 Pin	Description
SCK	D5 (GPIO14)	GPIO18	SPI Clock
MISO	D6 (GPIO12)	GPIO19	SPI Data In
MOSI	D7 (GPIO13)	GPIO23	SPI Data Out
NSS/CS	D8 (GPIO15)	GPIO5	Chip Select
RST	D0 (GPIO16)	GPIO14	Reset
DIO0	D1 (GPIO5)	GPIO26	Interrupt Pin

Ultrasonic Radar Module Connections

The ultrasonic radar system uses an HC-SR04 ultrasonic sensor mounted on an SG90 servo for scanning:

Component	Pin	ESP32 Default	ESP8266 Default	Notes
HC-SR04	VCC	5 V (VIN)	3V3*	Prefer a 5 V rail on ESP8266 if level shifted
HC-SR04	GND	GND	GND	Common ground with MCU and servo
HC-SR04	Trig	GPIO 32	D6	Defined by TRIG_PIN constant
HC-SR04	Echo	GPIO 33	D7	Add voltage divider when using ESP8266
SG90	VCC	5 V (external)	5 V (external)	Use dedicated supply; share ground
SG90	GND	GND	GND	Tie grounds together
SG90	PWM	GPIO 13	D5	Defined by SERVO_PIN constant

Note: HC-SR04 ECHO outputs 5 V. Use a level shifter or resistor divider when interfacing with 3.3 V-only boards such as ESP8266.

Power the logic side with 5 V, feed the motor supply (7–12 V typical) to VCC/VIN, and keep grounds common between the driver and the MCU.

---

Network Setup

Tank Receiver (RX) Configuration

On boot, the receiver firmware:

1. Creates a SoftAP named TankController (password tank12345)
2. Starts web server at http://192.168.4.1 with manual control interface
3. Connects to configured WiFi network (if credentials provided)
4. Establishes WebSocket connection to Control Broker service
5. Registers tank ID and begins heartbeat transmission
6. Exposes REST endpoint at /cmd for local command injection

Control Broker Service

WebSocket gateway deployed on AWS Elastic Beanstalk:

• Listens for tank WebSocket connections on /ws/tank/{tank_id}
• Accepts radar sensor feeds on /ws/radar/source/{source_id} and rebroadcasts to /ws/radar/listener
• Subscribes to Redis tank_commands stream
• Routes commands to connected tanks
• Publishes telemetry to Redis tank_status stream
• Stores radar sweeps to Redis tank_radar stream for downstream consumers
• Health check endpoint at /health
• Environment variables: REDIS_URL, REDIS_COMMAND_STREAM, REDIS_STATUS_STREAM, REDIS_STATUS_MAXLEN, REDIS_RADAR_STREAM, REDIS_RADAR_MAXLEN

Visual Controller Service

Web UI service deployed on AWS Elastic Beanstalk:

• Provides browser interface at /controller/{tank_id}
• REST API at POST /command/{tank_id} for command submission
• WebSocket endpoint at /ws/ui/{tank_id} for real-time telemetry
• Publishes commands to Redis tank_commands stream
• Subscribes to Redis tank_status stream
• Environment variables: REDIS_URL, REDIS_COMMAND_STREAM, REDIS_STATUS_STREAM

Redis Event Backbone

AWS ElastiCache (Valkey) provides:

• Stream-based message queuing
• Automatic message TTL and stream trimming
• TLS-encrypted connections (rediss://)
• High availability and durability
• Consumer groups for scalability
• Streams in use: tank_commands, tank_status, tank_radar

---

Deployment

Hardware Setup

1. Install required Arduino libraries via Library Manager
2. Update encryption keys in common/ControlProtocol.h
3. Configure LoRa frequency and parameters for your region
4. Flash receiver sketch to ESP32/ESP8266 on tank
5. Flash transmitter sketch to remote LoRa controller
6. Configure WiFi credentials in receiver firmware
7. Test WebSocket connection to Control Broker

Cloud Services Setup

1. Create AWS ElastiCache (Valkey) instance with TLS enabled
2. Package services using package.ps1 script
3. Deploy control-broker-*.zip to Elastic Beanstalk environment
4. Deploy visual-controller-*.zip to separate Elastic Beanstalk environment
5. Configure REDIS_URL environment variable with rediss:// connection string
6. Verify health endpoints respond correctly
7. Test end-to-end command flow from browser to tank

---

Dependencies

Hardware (Arduino/PlatformIO)

• Arduino LoRa library by Sandeep Mistry
• mbedTLS (included with ESP8266/ESP32 cores)
• ESP8266WiFi or WiFi (ESP32) for network connectivity
• WebSocketsClient for Control Broker connection
• TankShift motor control library (included)
• ArduinoJson for command parsing

Cloud Services (Python)

• FastAPI - Async web framework
• redis.asyncio - Async Redis client
• pydantic - Data validation
• uvicorn - ASGI server
• python-dotenv - Environment configuration

---

Getting Started

Quick Start (Hardware)

1. Install Arduino dependencies
2. Update ControlProtocol.h with encryption keys
3. Configure WiFi credentials in receiver firmware
4. Set Control Broker WebSocket URL in firmware
5. Flash firmware to devices
6. Power up and verify WebSocket connection

Quick Start (Cloud)

1. Set up AWS ElastiCache (Valkey) with TLS
2. Run .\package.ps1 to create deployment packages
3. Deploy both services to Elastic Beanstalk
4. Configure REDIS_URL environment variables
5. Access Visual Controller web interface
6. Test command transmission to connected tanks
