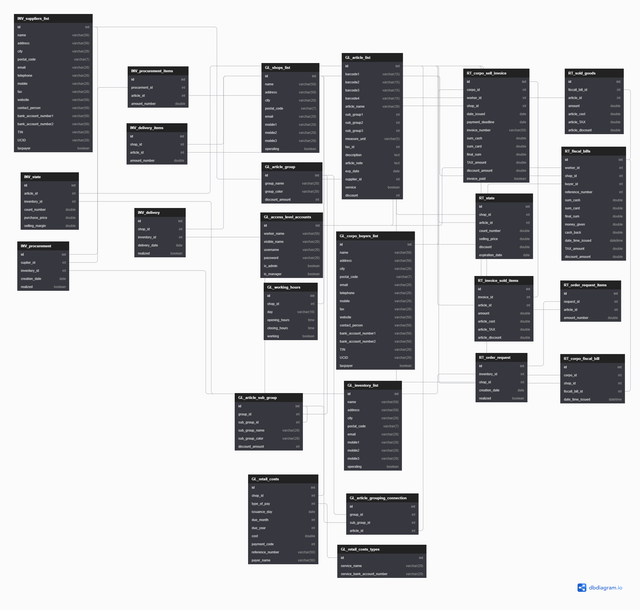

Main design:

• https://dbdiagram.io/d/5fe24dca9a6c525a03bc07c1

---

---

Table of contest

Global tables	Inventory tables	Retail stores tables
article_list	state	state
article_group	procurement	fiscal_bills
article_sub_group	procurement_items	sold_goods
article_grouping_connection	delivery	order_request
shops_list	delivery_items	order_request_items
inventory_list	suppliers_list	corpo_sell_invoice
working_hours		invoice_sold_items
corpo_buyers_list		corpo_fiscal_bill
access_level_accounts
retail_costs
retail_costs_types

Table segments:

• global
• inventory
• store

Global tables - EVERY TABLE IN GLOBAL SCOPE HAS PREFIX 'GL_'

Table Name	Primary Key(s)	Foreign key(s)	Referring attribute
article_list	id	INV_suppliers_list.id	supplier_id
article_group	id	/	/
article_sub_group	id	GL_article_group.id GL_article_sub_group.id	group_id sub_group_id
article_grouping_connection	id	GL_article_group.id GL_article_sub_group.id GL_article_list.id	group_id sub_group_id article_id
shops_list	id	/	/
inventory_list	id	/	/
working_hours	id	GL_shops_list.id	shop_id
corpo_buyers_list	id	/	/
access_level_accounts	id	/	/
retail_costs	id	GL_shops_list.id GL_retail_costs_types.id	shop_id type_of_pay
retail_costs_types	id	/	/

• GL_article_list - articles present in the retail system
• GL_article_group - grouping articles for the sake of easier internal organization
• GL_article_sub_group - another level of grouping (related article group)
• GL_article_grouping_connection - tracking connection between article and group
• GL_shops_list - retail shops consisting inside company that is using software
• GL_inventory_list - inventories consisting inside company that is using software
• GL_working_hours - shop working hours
• GL_corpo_buyers_list - shop client companies
• GL_access_level_accounts - contains various information about users, admins and workers
• GL_retail_costs - consists of costs (bills ,invoices) retail may come across
• GL_retail_costs_types - types of retail costs (electrical power, water, internet, supplier invoices)

---

Invertory tables - EVERY TABLE IN INVERTORY SCOPE HAS PREFIX 'INV_'

Table Name	Primary Key(s)	Foreign key(s)	Referring attribute
state	id	GL_article_list.id GL_inventory_list.id	article_id inventory_id
procurement	id	INV_suppliers_list.id GL_inventory_list.id	supplier_id inventory_id
procurement_items	id	INV_procurement.id GL_article_list.id	procurement_id article_id
delivery	id	GL_shops_list.id GL_inventory_list.id	shop_id inventory_id
delivery_items	id	GL_shops_list.id GL_article_list.id	shop_id article_id
suppliers_list	id	/	/

• INV_state - items/goods present in invertory
• INV_procurement - every procurement request
• INV_procurement_items - procurement list of items
• INV_delivery - contains information about sending goods from inventory to store(s)
• INV_delivery_items - delivery list of articles
• INV_suppliers_list - contains information about all suppliers

---

Shops tables - EVERY TABLE IN SHOP SCOPE HAS PREFIX 'RT_'

Table Name	Primary Key(s)	Foreign key(s)	Referring attribute
state	id	GL_shops_list.id GL_article_list.id	shop_id article_id
fiscal_bills	id	GL_access_level_accounts.id GL_shops_list.id GL_corpo_buyers_list.id	worker_id shop_id buyer_id
sold_goods	id	RT_fiscal_bills.id GL_article_list.id	fiscal_bill_id article_id
order_request	id	GL_inventory_list.id GL_shops_list.id	inventory_id shop_id
order_request_items	id	RT_order_request.id GL_article_list.id	request_id article_id
corpo_sell_invoice	id	GL_corpo_buyers_list.id GL_access_level_accounts.id GL_shops_list.id	corpo_id worker_id shop_id
invoice_sold_items	id	RT_corpo_sell_invoice.id GL_article_list.id	invoice_id article_id
corpo_fiscal_bill	id	GL_corpo_buyers_list.id GL_shops_list.id RT_fiscal_bills.id	corpo_id shop_id fiscal_bill_id

• RT_state - items/goods present in shop/market
• RT_fiscal_bills - contains information about fiscal billing
• RT_sold_goods - contains information about goods sold
• RT_order_request - contains information about need order to the inventory (shortage of items in shop)
• RT_order_request_items - contains information about items needed in shop (related to RT_need_order)
• RT_corpo_sell_invoice - contains information about selling items to companies over invoices
• RT_invoice_sold_items - list of items sold over invoice
• RT_corpo_fiscal_bill - contains information about selling items to companies over cash (fiscal bills)

---

Global tables

GL_article_list

Attribute Name	Data Type	Primary Key	Foreign Key	NULL	Description
id	int	✅	❌	❌	Auto-increment value
barcode*	varchar	❌	❌	✅	Barcode of an item, can be multiple referencing
article_name	varchar	❌	❌	❌	Full article name
tax_id	int	❌	❌	❌	Controls TAX % in cash register (DEFAULT 0)
description	text	❌	❌	✅	Description of an article
article_note	text	❌	❌	✅	Additional info about product
exp_date	date	❌	❌	✅	Expiration date of an article
supplier_id	int	❌	✅	✅	Unique identification value for suppliers , (Reference to supplier)
service	boolean	❌	❌	❌	Either service or selling point
discount	int	❌	❌	✅	Article discount

Back to top

GL_article_group

Attribute Name	Data Type	Primary Key	Foreign Key	NULL	Description
id	int	✅	❌	❌	Auto-increment value
group_name	varchar	❌	❌	❌	Referencing name of the group
group_color	varchar	❌	❌	✅	OPTIONAL: sorting articles by color
discount_amount	int	❌	❌	✅	Amount of discount on article price

Back to top

GL_article_sub_group

Attribute Name	Data Type	Primary Key	Foreign Key	NULL	Description
id	int	✅	❌	❌	Auto-increment value
group_id	int	❌	✅	❌	Referencing group it belongs to
sub_group_id	int	❌	✅	✅	OPTIONAL: If sub-group belongs to another sub-group
sub_group_name	varchar	❌	❌	❌	Name of the sub-group
sub_group_color	varchar	❌	❌	✅	OPTIONAL: sorting articles by color
discount_amount	int	❌	❌	✅	Amount of discount on article price

Back to top

GL_article_grouping_connection

Attribute Name	Data Type	Primary Key	Foreign Key	NULL	Description
id	int	✅	❌	❌	Auto-increment value
group_id	int	❌	✅	✅	Referencing group
sub_group_id	int	❌	✅	✅	Referencing sub-group
article_id	int	❌	✅	❌	Referencing article

Back to top

GL_shops_list

Attribute Name	Data Type	Primary Key	Foreign Key	NULL	Description
id	int	✅	❌	❌	Auto-increment value
name	varchar	❌	❌	❌	Name of workplace
address	varchar	❌	❌	✅	Address of workplace
city	varchar	❌	❌	✅	City where workplace is located
postal_code	varchar	❌	❌	✅	Postal code for workplace
email	varchar	❌	❌	✅	Email address for workplace
mobile*	varchar	❌	❌	✅	Mobile number for workplace
operating	boolean	❌	❌	❌	Shop working or not

Back to top

GL_inventory_list

Attribute Name	Data Type	Primary Key	Foreign Key	NULL	Description
id	int	✅	❌	❌	Auto-increment value
name	varchar	❌	❌	❌	Name of workplace
address	varchar	❌	❌	✅	Address of workplace
city	varchar	❌	❌	✅	City where workplace is located
postal_code	varchar	❌	❌	✅	Postal code for workplace
email	varchar	❌	❌	✅	Email address for workplace
mobile*	varchar	❌	❌	✅	Mobile number for workplace
operating	boolean	❌	❌	❌	Shop working or not

Back to top

GL_working_hours

Attribute Name	Data Type	Primary Key	Foreign Key	NULL	Description
id	int	✅	❌	❌	Auto-increment value
shop_id	int	❌	✅	❌	Reference to working hours
day	varchar	❌	❌	❌	Day in a week
opening_hours	time	❌	❌	✅	Defines starting hours
closing_hours	time	❌	❌	✅	Defines closing hours
working	boolean	❌	❌	❌	Defines if place is open or not

Back to top

GL_corpo_buyers_list

Attribute Name	Data Type	Primary Key	Foreign Key	NULL	Description
id	int	✅	❌	❌	Auto-increment value
name	varchar	❌	❌	❌	Name of company
address	varchar	❌	❌	✅	Address of company
city	varchar	❌	❌	✅	City where company is located
postal_code	varchar	❌	❌	✅	Postal code for company
email	varchar	❌	❌	✅	Email address for company
telephone	varchar	❌	❌	✅	Mobile number for company
mobile	varchar	❌	❌	✅	Mobile number for company
fax	varchar	❌	❌	✅	Fax number for company
website	varchar	❌	❌	✅	Website of the company
contact_person	varchar	❌	❌	✅	Company's contact person
bank_account_number*	varchar	❌	❌	✅	Company's bank account number
TIN	varchar	❌	❌	❌	TAX Identification Number (PIB)
UCID	varchar	❌	❌	❌	Unique Company Identification Number (MB)
taxpayer	boolean	❌	❌	❌	Wether company is in tax system

Back to top

GL_access_level_accounts

Attribute Name	Data Type	Primary Key	Foreign Key	NULL	Description
id	int	✅	❌	❌	Auto-increment value
worker_name	varchar	❌	❌	✅	Worker's full name
visible_name	varchar	❌	❌	❌	Nickname in software
username	varchar	❌	❌	❌	Worker's username, LOGIN
password	varchar	❌	❌	❌	Worker's password, LOGIN
is_admin	boolean	❌	❌	❌	Defines if user has admin privileges
is_manager	boolean	❌	❌	❌	Defines if user has manager privileges

Back to top

GL_retail_costs

Attribute Name	Data Type	Primary Key	Foreign Key	NULL	Description
id	int	✅	❌	❌	Auto-increment value
shop_id	int	❌	✅	❌	Reference to shop/workplace
type_of_pay	int	❌	✅	❌	Type of bill, references to bill type
issuance_day	date	❌	❌	❌	Day of bill issuance
due_month	int	❌	❌	❌	Month of debt towards issuer
due_year	int	❌	❌	❌	Year of debt towards issuer
cost	double	❌	❌	❌	Amount of due money on bill
payment_code	int	❌	❌	✅	Payment code
reference_number	varchar	❌	❌	✅	Unique number connecting payer and issuer
payer_name	varchar	❌	❌	❌	Name of payer

Back to top

GL_retail_costs_types

Attribute Name	Data Type	Primary Key	Foreign Key	NULL	Description
id	int	✅	❌	❌	Auto-increment value
service_name	varchar	❌	❌	❌	Name of the service that bill is referencing to
service_bank_account_number	varchar	❌	❌	✅	Bank account of bill issuer

Back to top

Inventory tables

INV_state

Attribute Name	Data Type	Primary Key	Foreign Key	NULL	Description
id	int	✅	❌	❌	Auto-increment value
article_id	int	❌	✅	❌	The reference to article
inventory_id	int	❌	✅	❌	The reference to specific inventory
count_number	double	❌	❌	❌	Amount of specific article in inventory
purchase_price	double	❌	❌	❌	The price for which is that article paid
selling_margin	double	❌	❌	❌	The percent that increases the price of specific article

Back to top

INV_procurement

Attribute Name	Data Type	Primary Key	Foreign Key	NULL	Description
id	int	✅	❌	❌	Auto-increment value
suplier_id	int	❌	✅	❌	The reference to supplier
inventory_id	int	❌	✅	❌	The reference to specific inventory
creation_date	date	❌	❌	❌	Date when we created procurement
realized	bool	❌	❌	❌	If procurement is done or still filling

Back to top

INV_procurement_items

Attribute Name	Data Type	Primary Key	Foreign Key	NULL	Description
id	int	✅	❌	❌	Auto-increment value
procurement_id	int	❌	✅	❌	The reference to procurement
article_id	int	❌	✅	❌	The reference to specific article
amount_number	double	❌	❌	❌	Order Amount

Back to top

INV_delivery

Attribute Name	Data Type	Primary Key	Foreign Key	NULL	Description
id	int	✅	❌	❌	Auto-increment value
shop_id	int	❌	✅	❌	The reference to procurement
inventory_id	int	❌	✅	❌	Referencing to inventory
delivery_date	date	❌	❌	❌	Date when will be delivered
realized	bool	❌	❌	❌	If delivery is done or still pending

Back to top

INV_delivery_items

Attribute Name	Data Type	Primary Key	Foreign Key	NULL	Description
id	int	✅	❌	❌	Auto-increment value
shop_id	int	❌	✅	❌	The reference to procurement
article_id	int	❌	✅	❌	Date when will be delivered
amount_number	double	❌	❌	❌	Delivery amount

Back to top

INV_suppliers_list

Attribute Name	Data Type	Primary Key	Foreign Key	NULL	Description
id	int	✅	❌	❌	Auto-increment value
name	varchar	❌	❌	❌	Name of company
address	varchar	❌	❌	✅	Address of company
city	varchar	❌	❌	✅	City where company is located
postal_code	varchar	❌	❌	✅	Postal code for company
email	varchar	❌	❌	✅	Email address for company
telephone	varchar	❌	❌	✅	Mobile number for company
mobile	varchar	❌	❌	✅	Mobile number for company
fax	varchar	❌	❌	✅	Fax number for company
website	varchar	❌	❌	✅	Website of the company
contact_person	varchar	❌	❌	✅	Company's contact person
bank_account_number*	varchar	❌	❌	✅	Company's bank account number
TIN	varchar	❌	❌	❌	TAX Identification Number (PIB)
UCID	varchar	❌	❌	❌	Unique Company Identification Number (MB)
taxpayer	boolean	❌	❌	❌	Wether company is in tax system

Back to top

Retail stores tables

RT_state

Attribute Name	Data Type	Primary Key	Foreign Key	NULL	Description
id	int	✅	❌	❌	Auto-increment value
shop_id	int	❌	✅	❌	Reference to shop
article_id	int	❌	✅	❌	The reference to specific article
count_number	double	❌	❌	❌	Amount of present articles
selling_price	double	❌	❌	❌	Price of article per unit
discount	int	❌	❌	✅	Discount for article price (%)
expiration_date	date	❌	❌	✅	Expiration date for article

Back to top

RT_fiscal_bills

Attribute Name	Data Type	Primary Key	Foreign Key	NULL	Description
id	int	✅	❌	❌	Auto-increment value
worker_id	int	❌	✅	✅	Worker which issued a bill
shop_id	int	❌	✅	❌	Shop which issued a bill
buyer_id	int	❌	✅	✅	Referencing to corpo buyer
reference_number	int	❌	❌	❌	Unique number for a bill
sum_cash	double	❌	❌	✅	Amount of bill paid with cash
sum_card	double	❌	❌	✅	Amount of bill paid with a card
final_sum	double	❌	❌	❌	Final amount of a bill
money_given	double	❌	❌	❌	Amount of money customer has given
cash_back	double	❌	❌	❌	Difference between amount due and amount given
date_time_issued	datetime	❌	❌	❌	Date and time for issued bill
TAX_amount	double	❌	❌	❌	Amount of money for TAX
discount_amount	double	❌	❌	✅	Amount of money discounted

Back to top

RT_sold_goods

Attribute Name	Data Type	Primary Key	Foreign Key	NULL	Description
id	int	✅	❌	❌	Auto-increment value
fiscal_bill_id	int	❌	✅	❌	Reference to bill
article_id	int	❌	✅	❌	Reference to the article
amount	double	❌	❌	❌	Amount of article sold
article_cost	double	❌	❌	❌	Cost of article (after discount, if applicable)
article_TAX	double	❌	❌	❌	Amount of TAX
article_discount	double	❌	❌	✅	Amount of discount (in currency)

Back to top

RT_order_request

Attribute Name	Data Type	Primary Key	Foreign Key	NULL	Description
id	int	✅	❌	❌	Auto-increment value
inventory_id	int	❌	✅	❌	Referencing to inventory delivering
shop_id	int	❌	✅	❌	Referencing to shop ordering
creation_date	date	❌	❌	✅	Date order has been created
realized	bool	❌	❌	❌	If order request is ready or still in progress

Back to top

RT_order_request_items

Attribute Name	Data Type	Primary Key	Foreign Key	NULL	Description
id	int	✅	❌	❌	Auto-increment value
request_id	int	❌	✅	❌	Referencing request order
article_id	int	❌	✅	❌	Referencing article
amount_number	double	❌	❌	❌	Amount of article needed

Back to top

RT_corpo_sell_invoice

Attribute Name	Data Type	Primary Key	Foreign Key	NULL	Description
id	int	✅	❌	❌	Auto-increment value
corpo_id	int	❌	✅	❌	Referencing company
worker_id	int	❌	✅	✅	Worker which issued an invoice
shop_id	int	❌	✅	❌	Shop which issued an invoice
date_issued	date	❌	❌	❌	Date and time for issued invoice
payment_dedline	date	❌	❌	✅	Date deadline for payment
invoice_number	varchar	❌	❌	❌	Unique number for an invoice
sum_cash	double	❌	❌	✅	Amount of invoice paid with cash
sum_card	double	❌	❌	✅	Amount of invoice paid with a card
final_sum	double	❌	❌	❌	Final amount on invoice
TAX_amount	double	❌	❌	❌	Amount of money for TAX
discount_amount	double	❌	❌	✅	Amount of money discounted
invoice_paid	bool	❌	❌	❌	If company has paid invoice

Back to top

RT_invoice_sold_items

Attribute Name	Data Type	Primary Key	Foreign Key	NULL	Description
id	int	✅	❌	❌	Auto-increment value
invoice_id	int	❌	✅	❌	Reference to invoice
article_id	int	❌	✅	❌	Reference to the article
amount	double	❌	❌	❌	Amount of article sold
article_cost	double	❌	❌	❌	Cost of article (after discount, if applicable)
article_TAX	double	❌	❌	❌	Amount of TAX
article_discount	double	❌	❌	✅	Amount of discount (in currency)

Back to top

RT_corpo_fiscal_bill

Attribute Name	Data Type	Primary Key	Foreign Key	NULL	Description
id	int	✅	❌	❌	Auto-increment value
corpo_id	int	❌	✅	❌	Referencing company
shop_id	int	❌	✅	❌	Referencing shop
fiscal_bill_id	int	❌	✅	❌	Referencing issued bill
date_time_issued	datetime	❌	❌	❌	Date and time cash bill was issued

Back to top
